Home > Hougen HMD904 Versatile Portable Mag Drill
Model#: HMD904
Stock#: HO-0904101
UPC/GTIN/EIN: 662850000090

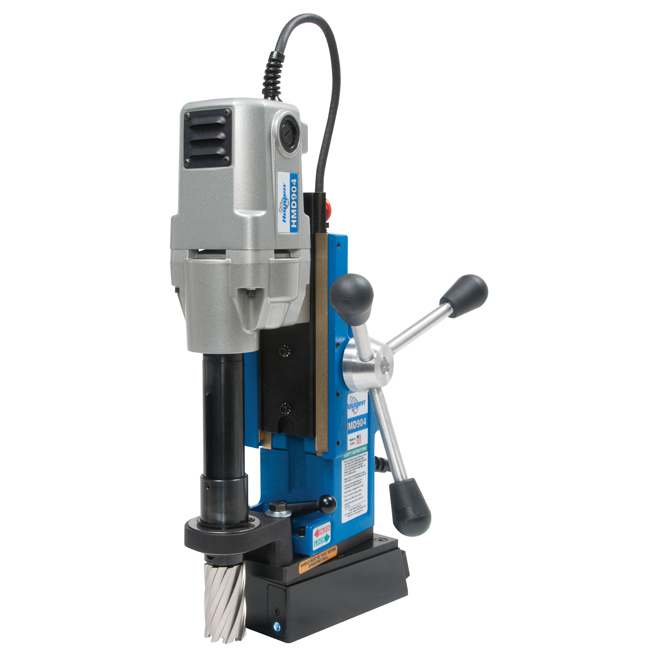

Hougen HMD904 Versatile Portable Magnetic Drill
HO-0904101
$1,107.00 Sale price: $1,107.00
THIS ITEM SHIPS FOR FREE!
Get It By Oct 07
- Large 1-1/2" x 2" capacity
- Positive slug ejection
- Uses 12,000 Cutters and Copperhead Carbide annular cutters which requires no tools for installation or removal
Hougen's HMD904 Portable Mag Drill is extremely lightweight and powerful, making it the drill of choice for fabrication. The HMD904 drills holes up to 2-1/2" in diameter and 2" deep. Hougen Drills are made for durability, and come complete with a carrying case and one year warranty. Use this magnetic drill with Hougen Annular Cutters and Hougen Cutting Fluid.
Features:
- Large 1-1/2" x 2" capacity
- Positive slug ejection
- Uses 12,000 Cutters and Copperhead Carbide annular cutters which requires no tools for installation or removal
- Feed handles quickly change from side to side
- Lift detector safety system
- Rear mounted controls
- Add on the Gravity Feed Coolant System (HMD904C)
- Carrying case included
- One year warranty
Accessories:
| HMD904 SPECIFICATIONS | |||
| Electrical System | 115V, 50/60 Hz - 9A, 1035W 230V, 50/60 Hz - 4.5A, 1035W |
||
| Motor | 8A (115V), 4 (230V), 450 RPM | ||
| Diameter | 7/16"- 1-1/2" (12mm - 38mm) | ||
| Depth | 2" (50mm) | ||
| Cutter/Mount | "12,000-Series" & Copperhead™ Carbide cutters, 3/4" shank | ||
| Dimensions | 18" H x 7-3/4" W x 11-5/8" L (457mm H x 197mm W x 295mm L) |
||
| Swivel Area | 1" W x 3/4" L (25mm W x 19mm L) |
||
| Magnet | Base | 3-1/8" W x 6-9/16" L (79mm W x 167mm L) | |
| 1" Plate (25mm) | Dead Lift 1750 lb. (794 kg) |
Drillpoint Breakaway 995 lb. (452 kg) |
|
| 3/8" Plate (9.5mm) | 1310 lb. (594 kg) | 710 lb. (322 kg) | |
| Magnet (Swivel) | 1" Plate (25mm) | Dead Lift 1340 lb. (608 kg) |
Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg) |
| 3/8" Plate (9.5mm) | 1015 lb. (460 kg) | For. 503 lb. (228 kg) Back 605 (274 kg) |
|
| Weight | 30 lb. (13.6 kg) • Shipping 44.1 lb (20 kg) | ||
| Weight (Swivel) | 33 lb. (15 kg) • Shipping 46.1 lb (20.9 kg) | ||
| Shipping Dimensions | 18 x 20 x 9" (45.72 x 50.8 x 22.9 cm) | ||
HO-0904101
| AMPS: | 9 Amps |
| Width: | 7-3/4" |
| Cutter: | 3/4" Shank |
| Depth: | 2" |
| Diameter: | 7/16" - 1-1/2" (12mm - 38mm) |
| Height (Generic): | 18" |
| Length: | 11-5/8" |
| Manufacturer: | Hougen |
| Tool Style: | Bare Tools (No Battery) |
| Voltage: | 115V |
| Warranty?: | 1 Year |
| Weight: | 43.09 |
