Model#: 1684-74
Stock#: KT-1684-74
Catalog#: 34NB
UPC/GTIN/EIN: 092644471728

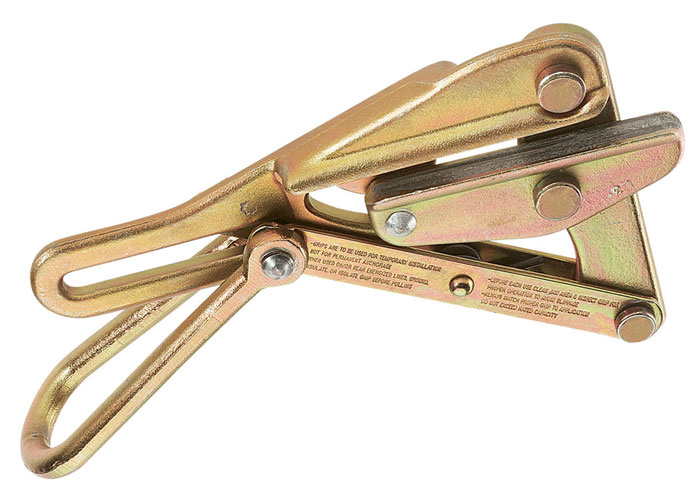

Klein Tools 1684-74 Chicago Grip with Curved-Jaw Grip .218 - .55 Inch for EHS Cable
$437.99 Sale price: $437.99
Klein Tools 1684-74 Chicago Grip with Curved-Jaw Grip .218 - .55 Inch for EHS Cable
Grips maintain temporary tension until the wire or cable can be permanently terminated. Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. Widely used in the power, communications and general construction fields to pull wire and cable. Locking loop handles allow the jaws to be held in an open position for easy placement on wire or cable. When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double "V" contour.
Features:
- 6.30 lbs. approximate weight each
- 5" jaw length
- .55" maximum cable
- .218" minimum cable
- 8,000 lbs. maximum safe load
Other Available Grips:
Type | Part Number | Diameter | Cable Type | Max Safe Load |
---|---|---|---|---|
Haven's Grip | 1604-20L | .125" - .5" | Messenger, Guy Strand | 5000 lbs |
Haven's Grip | 1625-20 | .28" - .75" | Wire Rope | 8000 lbs |
Chicago Grip | 1613-40 | .12" - .37" | Aircraft, EHS, Messenger, Guy Strand | 4500 lbs |
Chicago Grip | 1628-18 | .75" - 1.0" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
Chicago Grip | 1628-17 | .50" - .75" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
Chicago Grip | 1628-16 | .31" - .62" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
Chicago Grip | 1684-5C | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
Parallel-Jaw Grip | 1685-20 | .157" - .875" | Messenger, EHS, Coated | 4500 lbs |
Parallel-Jaw Grip | 1685-31 | .625" - 1.25" | Messenger, EHS, Guy Strand | 7500 lbs |
Chicago Grip | 1613-35 | #8 AWG Bare Copper - #6 AWG Bare Copper | Copper | 4500 lbs |
Parallel-Jaw Grip with Hot Latch | KT4602 | .30" - .80" | ACSR | 10,000 lbs |
Chicago Grip | 1684-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
Chicago Grip | 1692-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
Haven's Grip | 1625-20 1 | .50" - 1.0" | Wire Rope | 8000 lbs |
Chicago Grip with Curved Jaw-Grip | 1684-74 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
Chicago Grip | 1684-5F | .16" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
Haven's Grip | 1625-20-7/8 | .38" - .88" | Wire Rope | 8000 lbs |
Parallel Jaw Grip with Hot Latch | KT4802 | .70" - 1.25" | ACSR | 12,000 lbs |
Chicago Grip with Hot-Line Latch | 1684-5H | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
KT-1684-74
Country of Manufacture: | United States |
Manufacturer: | Klein Tools |
Weight: | 6.25 |
