Home > Klein Tools 1684-5H Chicago Grip with Hot-Line Latch .218 - 55 Inch for EHS Cable
Model#: 1684-5H
Stock#: KT-1684-5H
UPC/GTIN/EIN: 092644471674
Klein Tools 1684-5H Chicago Grip with Hot-Line Latch .218 - 55 Inch for EHS Cable
KT-1684-5H
$482.99 Sale price: $482.99
THIS ITEM SHIPS FOR FREE!
Direct Ship

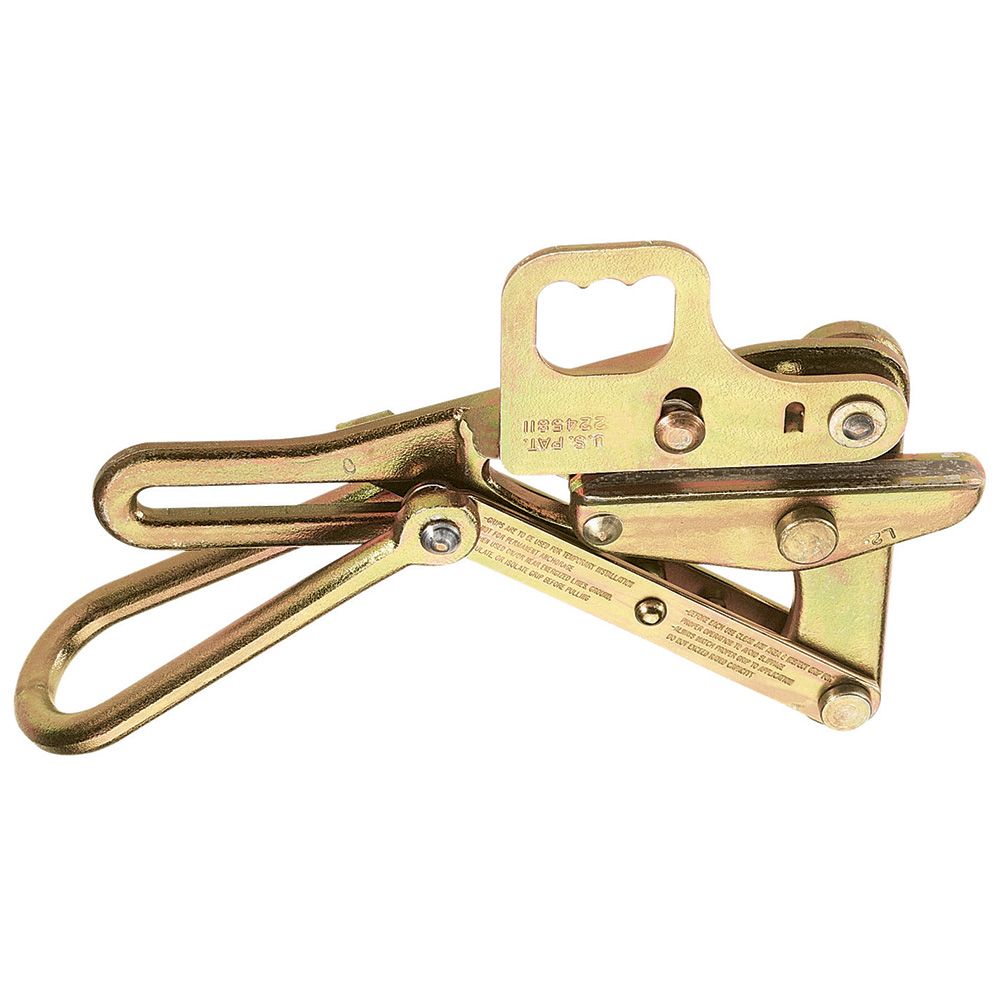

Klein Tools 1684-5H Chicago Grip with Hot-Line Latch .218 - 55 Inch for EHS Cable
This Klein 5 in. Chicago Grip With Hot-Line Latch is intended for steel stranded cables up to 0.55 inches in diameter.
Features:
- Hot-line grips for steel stranded cable.
- Grip may be placed on wire with hot-line stick.
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
- Standard hot-line grips are not supplied with springs or lock-open features.
- When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H).
Specifications:
- Approx. Weight Each: 6.50 lbs. (2.9 kg)
- Jaw Length: 5'' (127 mm)
- Maximum Cable: .55''
- Maximum Safe Load - lbs: 8000 lbs. (3629 kg)
- Minimum Cable: .218''
Other Available Grips:
| Type | Part Number | Diameter | Cable Type | Max Safe Load |
|---|---|---|---|---|
| Haven's Grip | 1604-20L | .125" - .5" | Messenger, Guy Strand | 5000 lbs |
| Haven's Grip | 1625-20 | .28" - .75" | Wire Rope | 8000 lbs |
| Chicago Grip | 1613-40 | .12" - .37" | Aircraft, EHS, Messenger, Guy Strand | 4500 lbs |
| Chicago Grip | 1628-18 | .75" - 1.0" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1628-17 | .50" - .75" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1628-16 | .31" - .62" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1684-5C | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Parallel-Jaw Grip | 1685-20 | .157" - .875" | Messenger, EHS, Coated | 4500 lbs |
| Parallel-Jaw Grip | 1685-31 | .625" - 1.25" | Messenger, EHS, Guy Strand | 7500 lbs |
| Chicago Grip | 1613-35 | #8 AWG Bare Copper - #6 AWG Bare Copper | Copper | 4500 lbs |
| Parallel-Jaw Grip with Hot Latch | KT4602 | .30" - .80" | ACSR | 10,000 lbs |
| Chicago Grip | 1684-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Chicago Grip | 1692-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Haven's Grip | 1625-20 1 | .50" - 1.0" | Wire Rope | 8000 lbs |
| Chicago Grip with Curved Jaw-Grip | 1684-74 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Chicago Grip | 1684-5F | .16" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Haven's Grip | 1625-20-7/8 | .38" - .88" | Wire Rope | 8000 lbs |
| Parallel Jaw Grip with Hot Latch | KT4802 | .70" - 1.25" | ACSR | 12,000 lbs |
| Chicago Grip with Hot-Line Latch | 1684-5H | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
KT-1684-5H
| Country of Manufacture: | United States |
| Manufacturer: | Klein Tools |
| Weight: | 6.50 |
