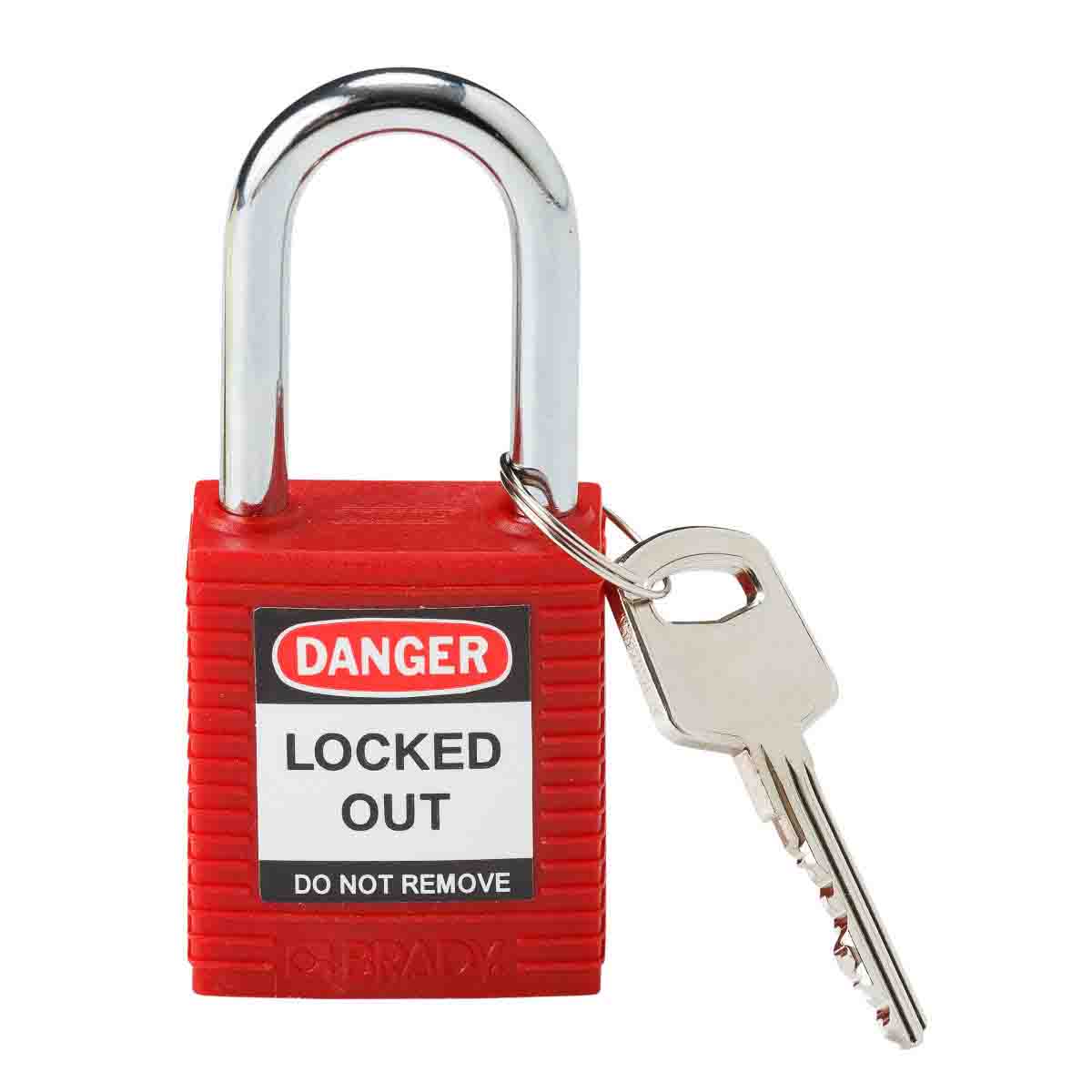

Brady Steel Lockout Padlocks
The Brady Steel Lockout Padlocks have nonconductive fiberglass-reinforced nylon bodies and unique key cylinders that prevent electricity from traveling from the shackle to the key.
Features:
- Padlocks feature lightweight, nonconductive fiberglass-reinforced nylon bodies, hardened steel shackles, and tamper-resistant 6-pin cylinders
- These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical, and corrosion resistance

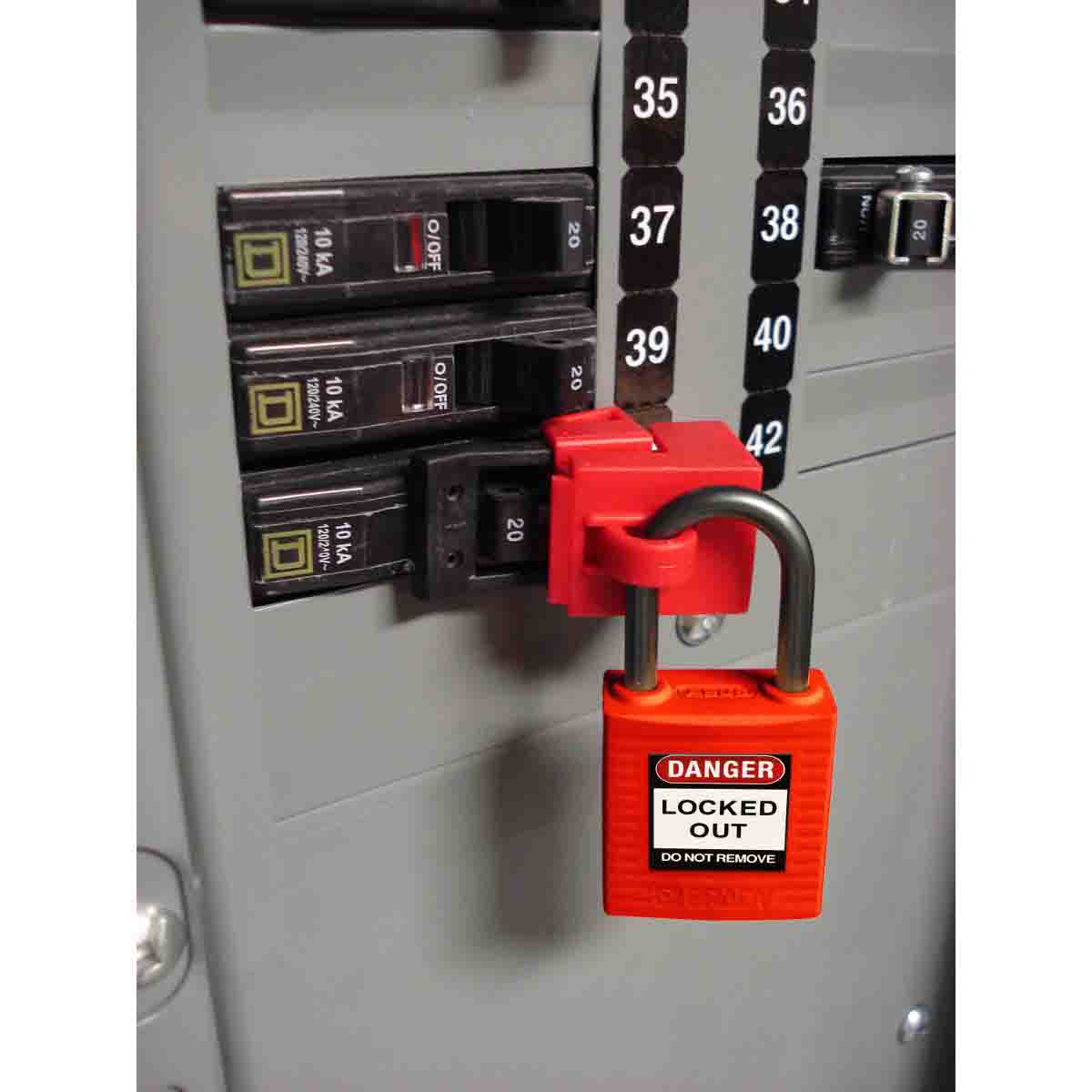

- Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications
- Reserved, paracentric keyway provides optimal security and the special design prevents the key from being released until the padlock shackle is closed
Specifications:
- Applications: Electrical, Industrial Manufacturing, Lockout Tagout
- UOM: Each
- Country of Origin: China
- HTS Code (Harmonized Tariff Schedule): 8301.10.6080
- ECCN (Export Commodity Control Number): EAR99
- Padlock Body Type: Standard
- Depth: 0.8 in
- Body Size: 1.75 in H x 1.5 in W x 0.82 in D
- Shackle Diameter: 0.25 in
- Material Properties: Anti-spark, Lightweight, Non-conductive
- Padlock Body Material: Nylon/Steel
- Color: Red
- Service Temperature Range °F: 0 °F - 250 °F
- Minimum Service Temperature °F: 0 °F
- Minimum Service Temperature °F: 0 °F
- Maximum Service Temperature °F: 250 °F
- Shackle Coating/Finish: Triple-coated, Hardened
- Conductivity: No
- Application: Lockout Tagout
- Key Mechanism: Standard Pin Tumbler
- Key Option: Keyed Different
- Key-Retaining: Yes
- Maximum Number of Different Keycodes: 15000
- Number of Pin Tumblers: 6
- Shackle Horizontal Clearance: 0.8 in
- Shackle Vertical Clearance: 1.5 in
- For Use With: Equipment Lockout
- Header: DANGER
- Text Legend: DANGER LOCKED OUT DO NOT REMOVE
- Text Language: English, French, Spanish
- Includes: (1) English Labels, (1) French Labels, (1) Keys, (1) Padlocks, (1) Spanish Labels
- Number of Keys Included: 1
- Number of Labels Included: 3
- UNSPSC: 46171501
- California Prop 65 : Prop 65WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- RoHS Compliance Status: Not applicable to this product

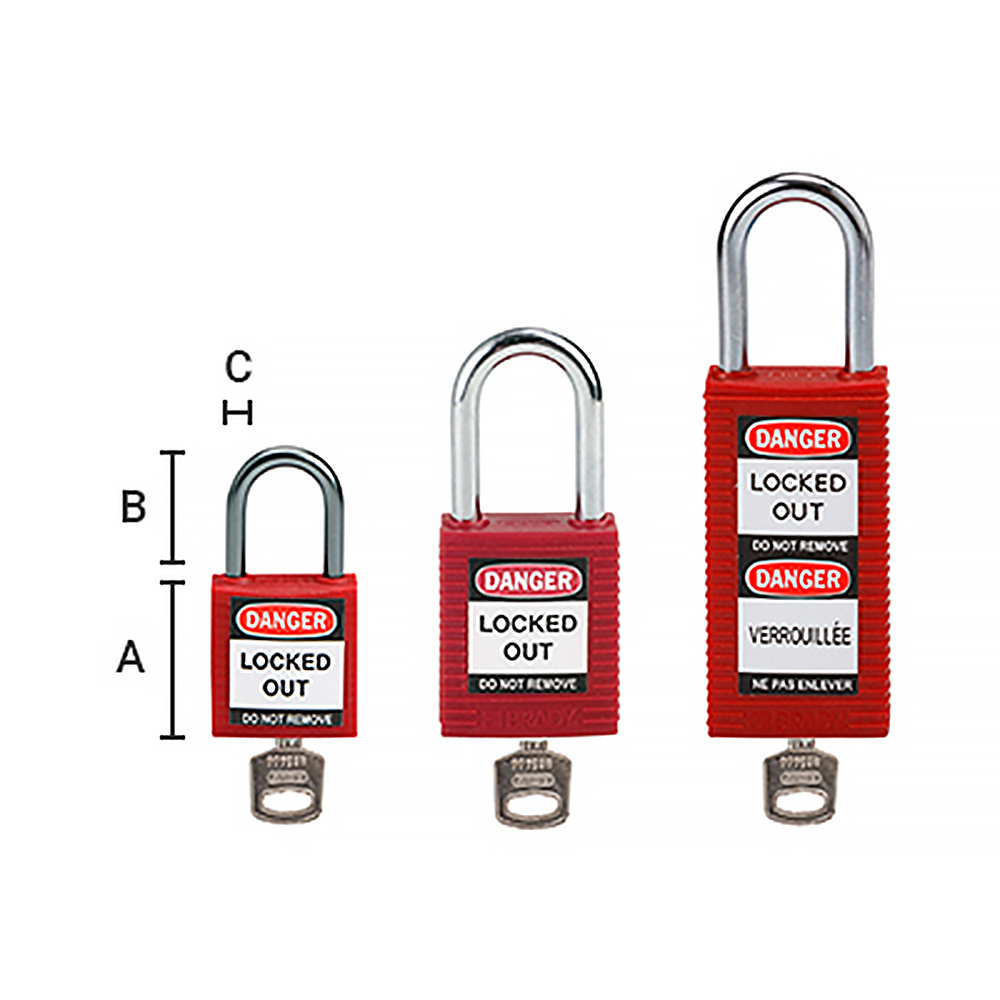

Padlock Size Comparison:
| |
Compact Padlocks |
Standard Padlocks |
Long Body Padlocks |
| A. Body (HxW) |
1.4 x 1.2 in.
(35.6 x 30.5 mm)
|
1.75 x 1.50 in.
(44.5 x 38.1 mm)
|
3.0 x 1.50 in.
(76.2 x 38.1 mm)
|
| B. Shackle Clearance |
1.00 in. / 25.4 mm |
1.50 in. / 38.1 mm |
1.50 in. / 38.1 mm |
| C. Shackle Diameter |
0.17 in. / 4.3 mm |
0.25 in. / 6.4 mm |
0.25 in. / 6.4 mm |
