Cable Prep All-In-One Stripping & Coring Tools

As the leading cable stripping tool manufacturer Cable Prep designed the All-In-One (AIO) cable preparation tool to simultaneously strip back the jacket, core the dielectric, and includes a cable beveling tool to strip back and bevel the outer conductor, and measure and bevel the center conductor on hardline cables. AIO stripping/coring tools work on 0.412” through 0.875” coaxial cables and can be used in place of Cable Prep brand JCS and SCT tools.

Features:

• Performs 6 functions in one: strip back the jacket, coring the dielectric, stripping back and beveling the outer conductor, and measuring and beveling the center conductor
• Cone-shaped cable entry
• The unique coring bit equals perfectly aligned cutting edges
• Adjustable center conductor stop
• Aligns coring and stripping blades
• Reshapes flattened cables
• Operates manually or with a 3/8” variable speed drill
• Open body and blade design allows debris to fall freely and facilitates cleaning the tool
• Separates into two tools (can be separated and used as a standard stripping and coring tool)
• Color coded guide sleeves (color based on cable size)

Available Models

• Non-Ractcheting Handles:
  • AIO-412   (Guide Sleeve: Light Blue)
  • AIO-500   (Guide Sleeve: Yellow)
  • AIO-565   (Guide Sleeve: Orange)

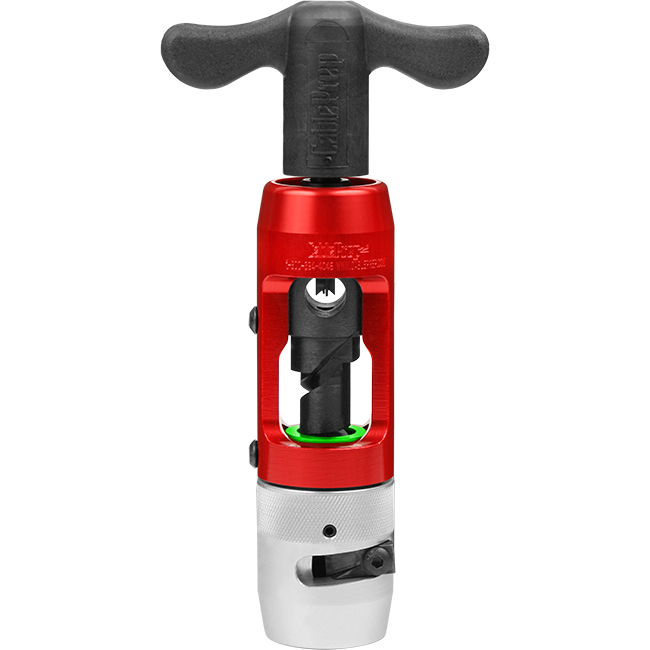

  • AIO-625   (Guide Sleeve: Green)
  • AIO-700   (Guide Sleeve: Maroon)
  • AIO-750   (Guide Sleeve: Red)
  • AIO-840   (Guide Sleeve: Light Grey)
  • AIO-875   (Guide Sleeve: Grey)
• Ractcheting Handles:
  • RAIO-412   (Guide Sleeve: Light Blue)
  • RAIO-500   (Guide Sleeve: Yellow)

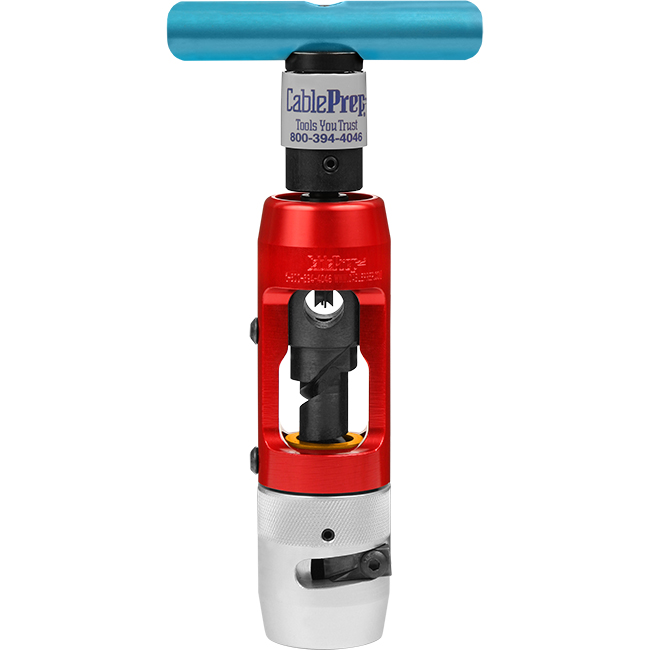

  • RAIO-565   (Guide Sleeve: Orange)
  • RAIO-625   (Guide Sleeve: Green)

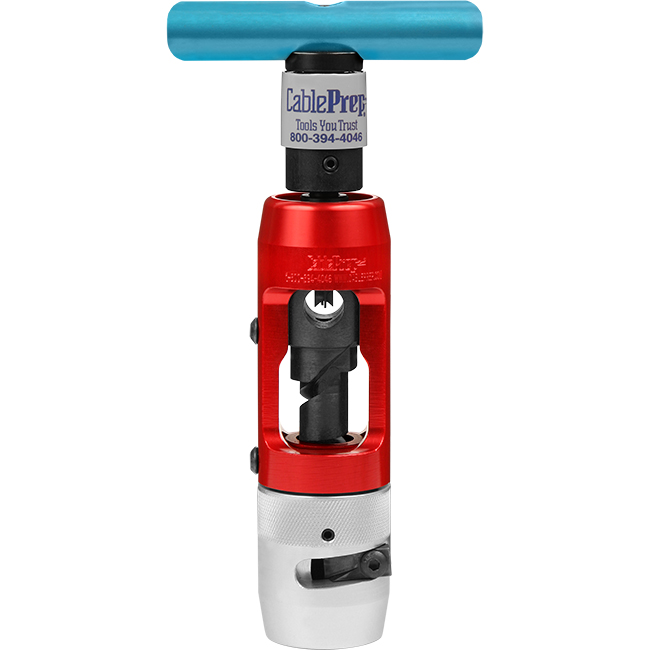

  • RAIO-700   (Guide Sleeve: Maroon)
  • RAIO-750   (Guide Sleeve: Red)
  • RAIO-840   (Guide Sleeve: Light Grey)
  • RAIO-875   (Guide Sleeve: Grey)



Specifications

• Non-Ratcheting:
  • AIO-412
  • Cable Type:   412”
  • Sleeve Color:   Light Blue
  • Weight:   18.56 ounces

• • AIO-500
  • Cable Type:   .500”
  • Sleeve Color:   Yellow
  • Weight:   19.2 ounces

• • AIO-565
  • Cable Type:   .565”
  • Sleeve Color:   Orange
  • Weight:   19.2 ounceS

• • AIO-625
  • Cable Type:   .625”
  • Sleeve Color:   Green
  • Weight:   19.2 ounces

• • AIO-700
  • Cable Type:   .700”
  • Sleeve Color:   Maroon
  • Weight:   19.52 ounces
•
  • AIO-750
  • Cable Type:   .750”
  • Sleeve Color:   Red
  • Weight:   19.52 ounces
•
  • AIO-840
  • Cable Type:   .840”
  • Sleeve Color:   Light Grey
  • Weight:   19.52 ounces
•
  • AIO-875
  • Cable Type:   .875”
  • Sleeve Color:   Grey
  • Weight:   19.52 ounces
• Ratcheting:
  • RAIO-412
  • Cable Type:   412”
  • Sleeve Color:   Light Blue
  • Weight:   26.88 ounces

• • RAIO-500
  • Cable Type:   .500”
  • Sleeve Color:   Yellow
  • Weight:   27.52 ounces

• • RAIO-565
  • Cable Type:   .565”
  • Sleeve Color:   Orange
  • Weight:   27.52 ounces
  •
  • RAIO-625
  • Cable Type:   .625”
  • Sleeve Color:   Green
  • Weight:   27.52 ounces

• • RAIO-700
  • Cable Type:   .700”
  • Sleeve Color:   Maroon
  • Weight:   27.84 ounces

• • RAIO-750
  • Cable Type:   .750”
  • Sleeve Color:   Red
  • Weight:   27.84 ounces

• • RAIO-840
  • Cable Type:   .840”
  • Sleeve Color:   Light Grey
  • Weight:   27.84 ounces

• • RAIO-875
  • Cable Type:   .875”
  • Sleeve Color:   Grey
  • Weight:   27.84 ounces
