Dillon Quick Check Tension Meter

Please click here for the Bluetooth version of this device.

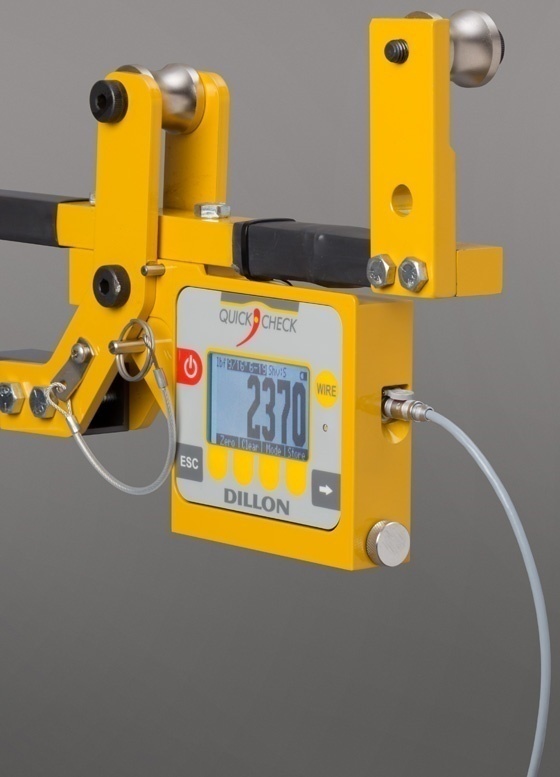

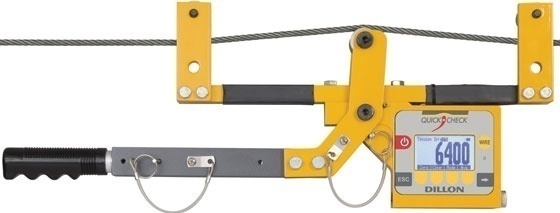

The Dillon Quick Check Tension Meter quickly measures tension in cable guardrails, guy lines, and overhead wires in seconds. The digital loadcell provides a highly accurate reading and allows you to choose a wire size (up to 1") stored in the tension meter's memory. The Quick Check Tension Meter comes pre-calibrated with tower calibrations and includes a carrying case.

Features:

• Sheaves with bearings eliminate friction and provide the best accuracy
• Includes both P and T Sheaves
• Accommodates a wide range of wire sizes and styles
• Extended handle length facilitates easy placement on cable
• Highly visible yellow finish
• Easy-to-read display with full-text prompts
• Easy to use soft-key interface
• Uses popular AA batteries and has a long life between changes

Specifications:

• Tension Capacities:
• 2,000 lbs/10 kN/1000 kg
• 10,000 lbs/45 kN/4500 kg
• Tension Units of Measure: Pound force Kilogram force, Newtons
• Sheave Range: Sheave accommodates rated wire size and 1/2" smaller

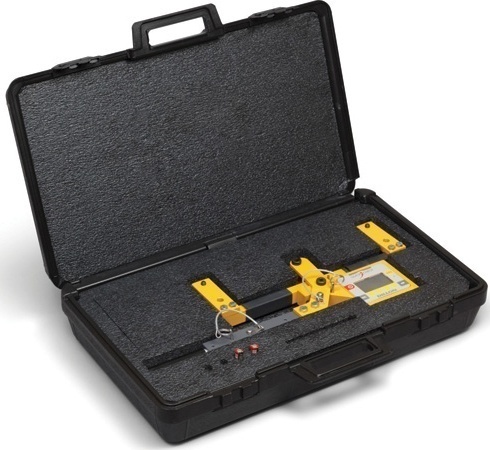

• Case included
• Wire Sizes: 3/16 in. through 1 in.
• +/- 3% instrument capacity (calibrated to specific wire size and type)
• Cable elongation of only 0.08 in. (2mm)
• Dot-graphic LCD display supports full text and digits




Included Calibrations:
