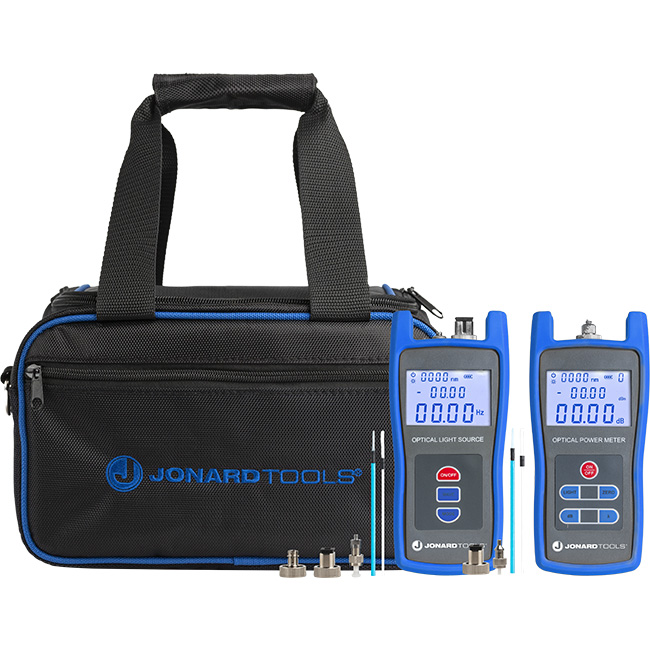

Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, single-mode)

Features & Includes:

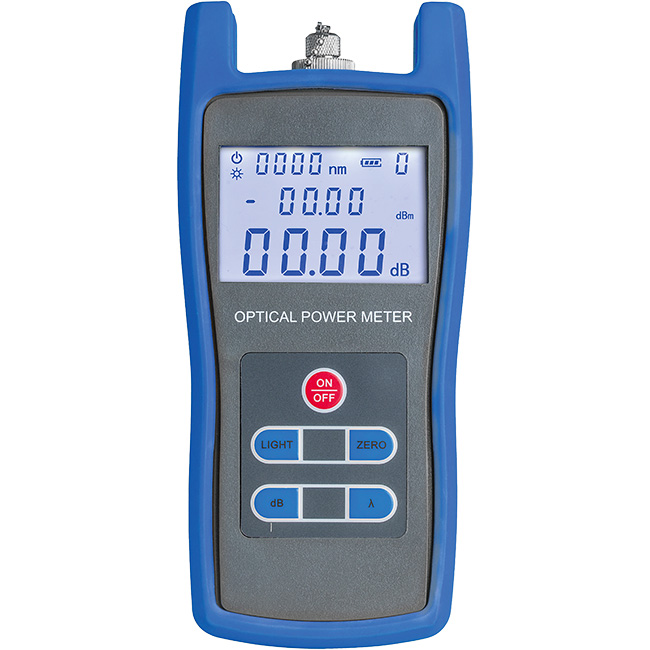

• The FPM-50A Fiber Optic Power Meter to measure wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
  • Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Includes FC/SC adapters for APC/PC/UPC connectors and an LC adapter for PC/UPC connectors only

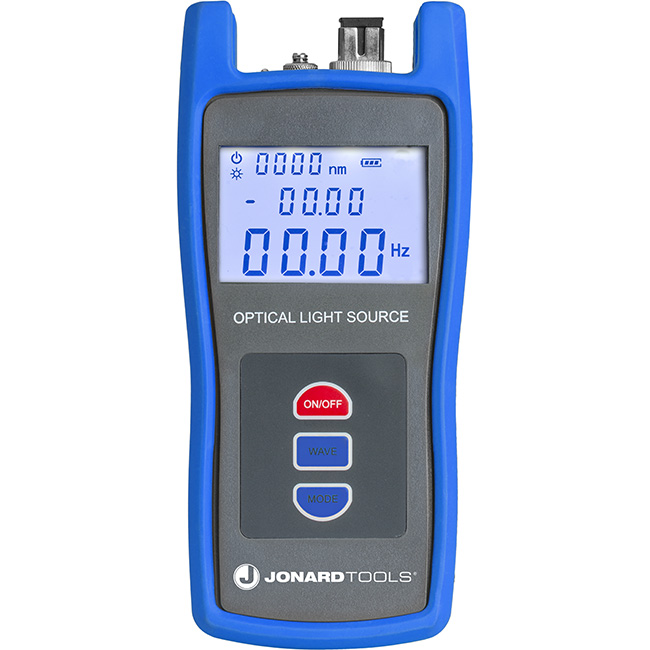

• The FLS-50 Fiber Optic Light Source to provide either 1310 nm or 1550 nm wavelengths for a stable light source for single-mode fiber measurements
  • Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 nm and 1550 nm wavelengths
  • Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
• A FREE BAG! The H-22 Rugged Carrying Case with Straps ($35 value)!
• Nylon Carry Case (FPM-50A)
• Protective Cover (FPM-50A)
• Storage Pouch (FLS-50)
• With both the FPM-50A and FLS-50
  • Instruction Manuals
  • (3) AA Batteries each (required for operation)
  • (2) Cleaning Swabs each
  • FC Adapter, LC Adapter, and SC Adapters­­­

This fiber optic tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing.

Specifications:

• Connector Types
• FC, SC (APC/PC/UPC) & LC (PC/UPC)
• Power Meter Wavelengths
• 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
• Light Source Wavelengths
• 1310, 1550
• Power Measurement Range
• -50 dBm to +26 dBm
