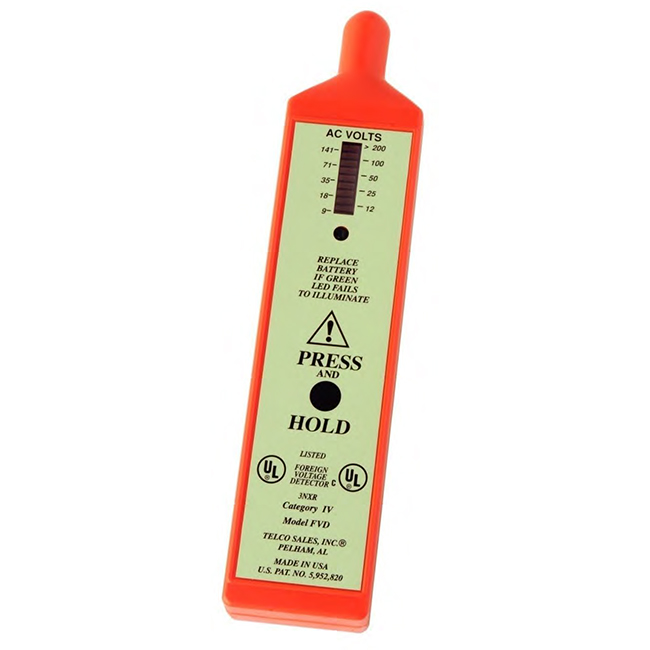

Senses voltages without contacting the source electrically. Telco Sales Foreign Voltage Detector (FVD) tests for potentially hazardous AC voltage that may be encountered by technicians in the low voltage and communication industries. The FVD warns technicians of hazardous voltage without contacting the electric source.

The FVD provides visual indication of the amount of AC being detected on a 10 step bar graph. An audible alarm will sound if the detected AC voltage exceeds 50 volts.

Features:

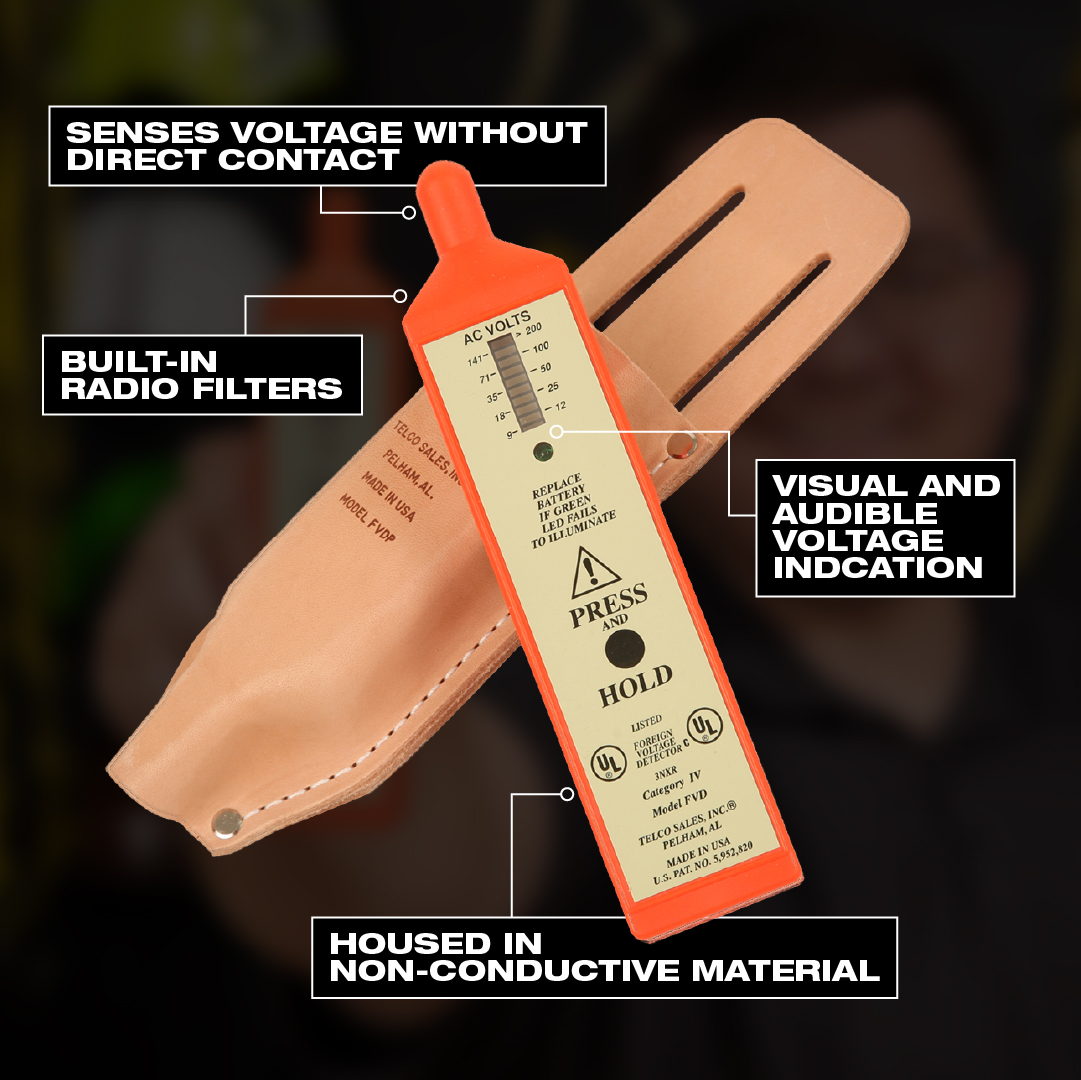

• Gives advance warning on extremely hazardous voltages
• Senses voltages without contacting the source electrically
• Indicates voltage both visually and audibly
• Suppresses 20Hz ringing and radio stations signals with built-in filters
• Housed in non-conductive material
• Exceeds dielectric strength tests for greater than 20 KV
• Allows tests parameters to be factory adjusted
• UL listed to U.S. and Canadian safety standards
• Made in U.S.A.

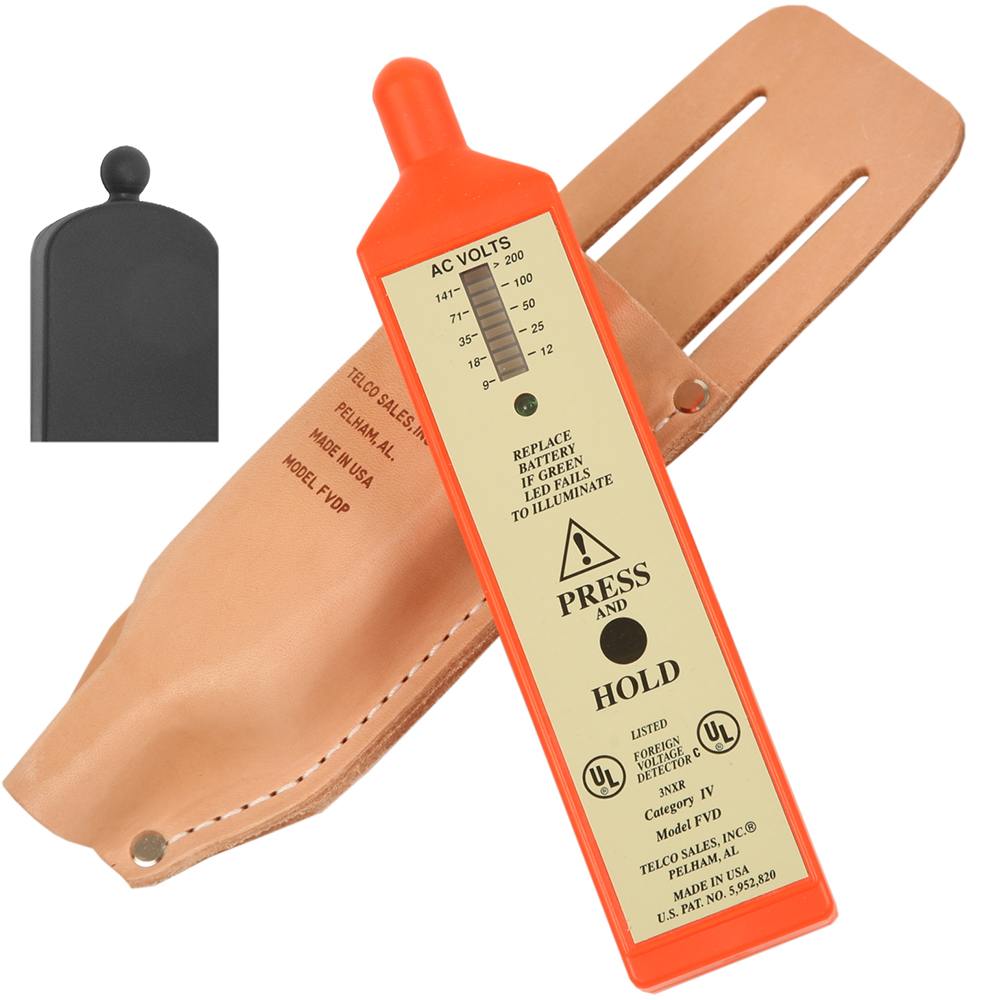

Includes:

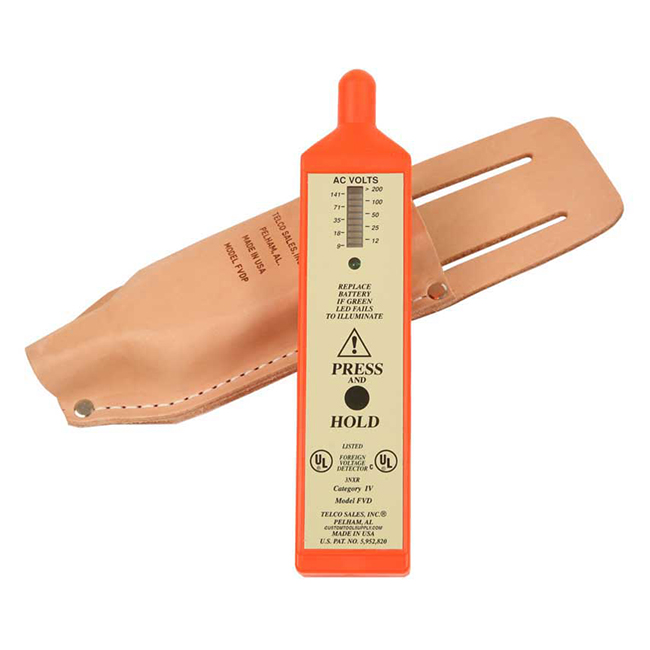

• 1 - FVD (Foreign Voltage Detector)

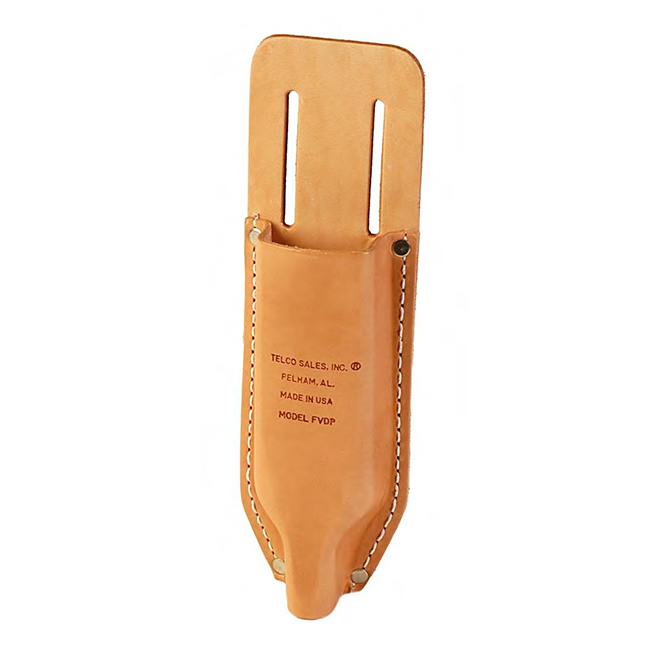

• 1 - FVDP (Leather Pouch)

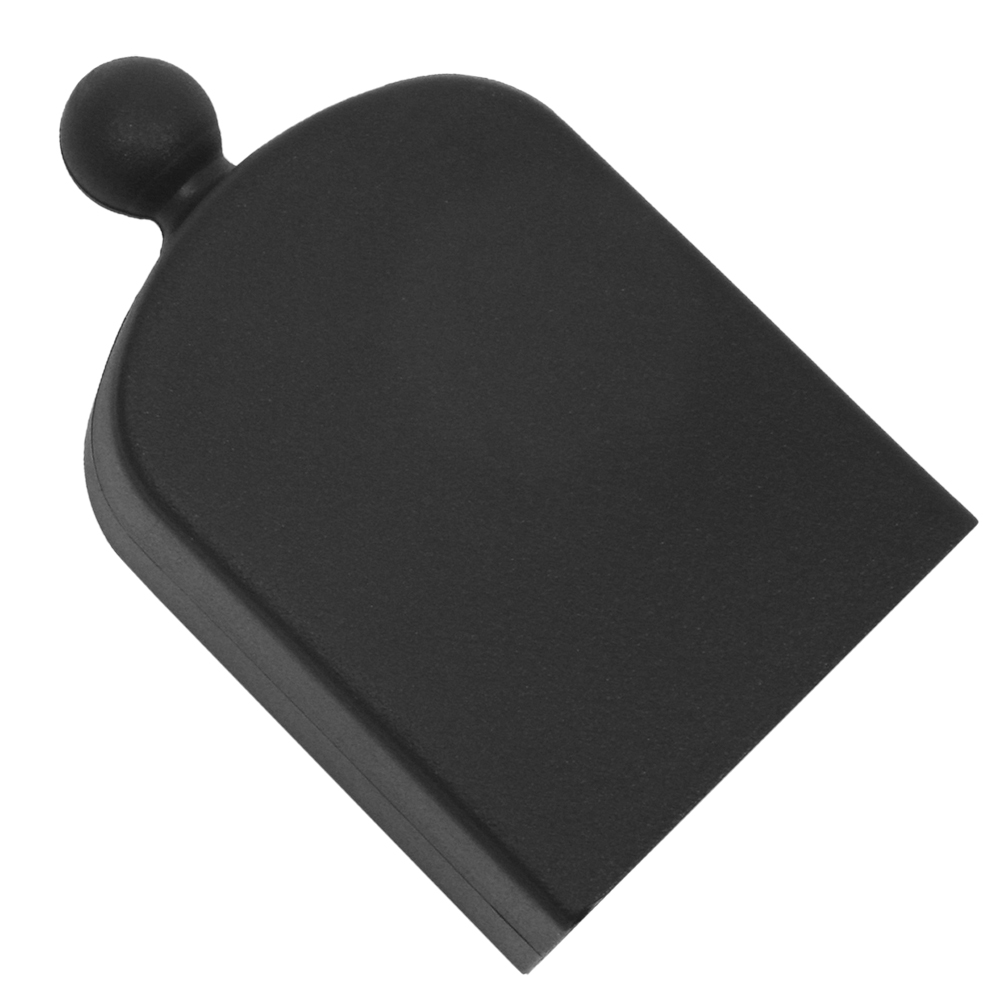

• 1 - FVDC (Conductive Cap)

Specifications:

Audible Warning

• Frequency:      2800 300 Hz
• Level:              Approximately 75 dba @ 1 foot
• Threshold:       >50 Vrms sensed voltage

Technical

• Range:            0 to 200 Vrms
                           Higher voltages are displayed as >200 volts
• Sensing Type:  AC only
• Frequency:      50 to 150 Hz
• Display:           10 step LED bar graph, Log response
• Operating:       -20 C to 50 C at 10% to 95% RH, non-condensing
• Storage:           -40 C to 85 C at 0 to 100% RH, non-condensing
• Size:                  1.7” x .9” x 7.8”
• Weight:             4.8 ounces
• Battery:             One (1) 9 Volt Alkaline
• Barrery Life:      > 9 hours continuous when idle (bar graph LED not activate)
• Shock & Vibration:  TR-EOP-000063 Compliant
