GMP JetStream Max Fiber Optic Cable Blowing Machine

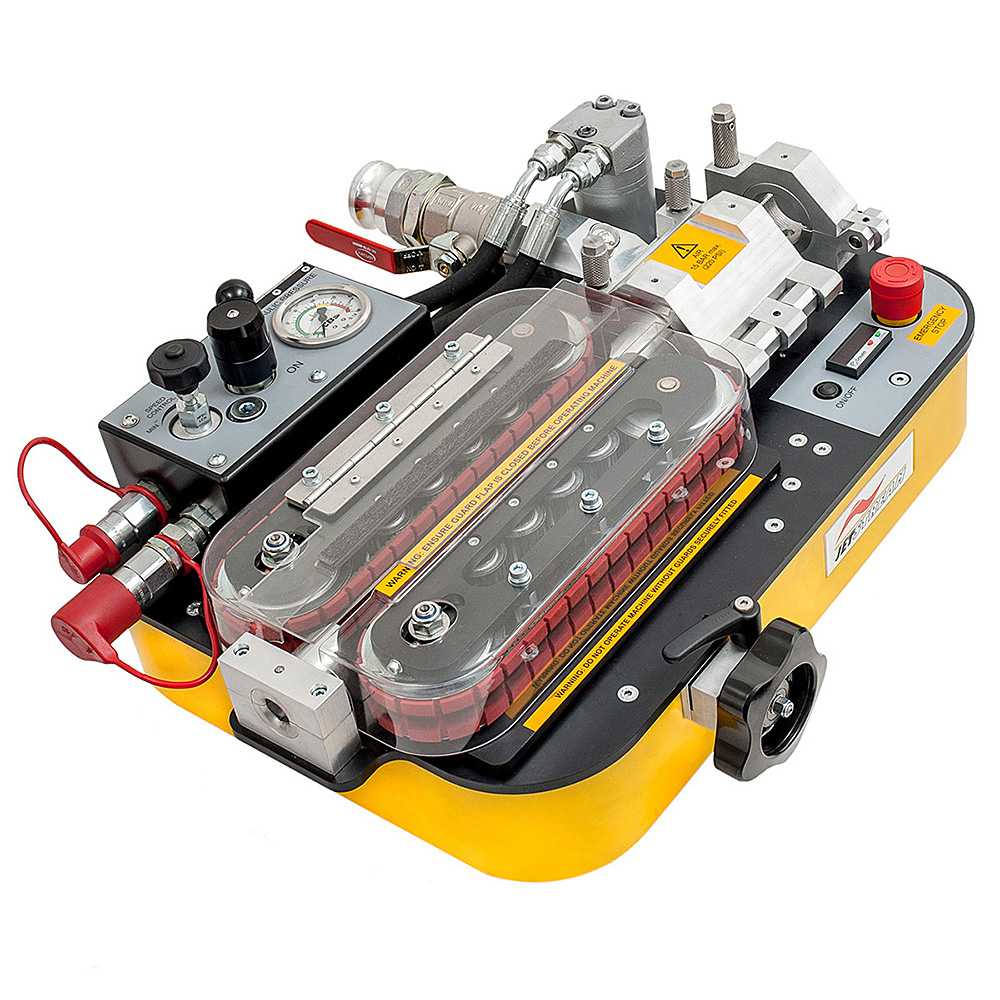

The JetStream has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32cc hydraulic motor, powered by a supplied power pack with oil cooler. The electronic monitoring system provides a read-out of speed and distance, helps protect against duct obstructions and includes an emergency stop. The JetStream is adjustable to suit a wide range of cable diameters .23-.79 in. (6-20mm), and duct diameters of .75-1.50 in. SDR (10-50mm OD). Optional belts suits a range of cable diameters from .16-.63 in. (4-16mm)

Features:

• Max Kit includes Duct Clamps (3/4” - 1.5”), Duct Seals (.75” - 1.5”), Cable Collets Assemblies (4mm - 20mm), Cable Seals (4mm - 20mm), Cable Seal Plugs (4mm - 20mm), and Option Belt (4-16mm Cable)
• Automatic cable centralizing
• Polycarbonate safety guarding
• Synchronous high grip profiled compliant drive belts
• Low maintenance
• Tabletop design
• 4 Lug Chicago fitting adapter supplied for compressor
• Variable speed controls

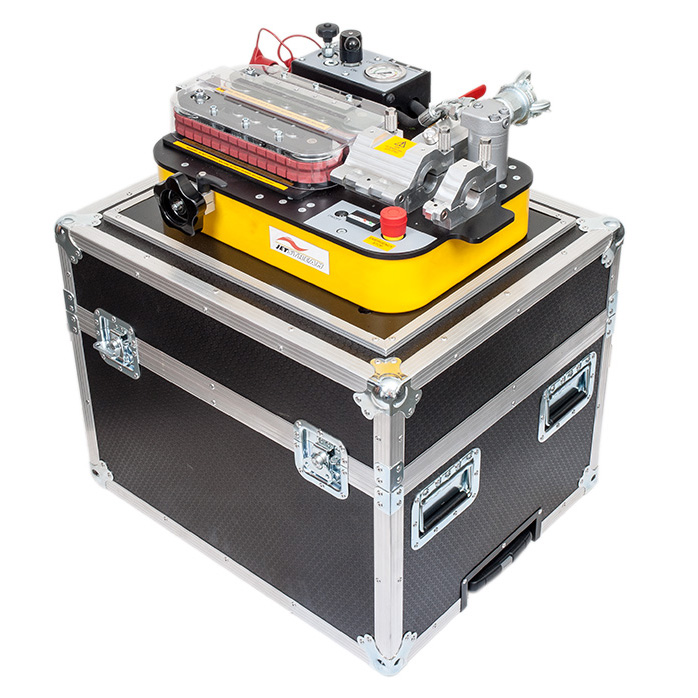

• Wheeled travel case with pull out handle for transportation
• Digital cable speed and length monitoring
• Tool kit
• Integral air valves and pressure gauges

Specifications:

• Cable Diameter: .16-79 in. (4-20 mm)
• Width: 19 in. (484 mm)
• Duct Size (Outside Dia): .75 – 1.50 in. SDR (10-50 mm OD)
• Length: 24.5 in. (620 mm)
• Cable Speed (Adjustable): 0-280 ft/min (0-85m/min)
• Air Pressure: 215 psi (15 bar) 450 cfm (12 m3/min)
• Machine only Net Weight: 68 lbs. (31kgs)
• Power Requirement: Supplied hydraulic power pack
• Total Weight (Machine, Case, and Power Pack): 277 lbs (126kgs)
