Home > Hougen HMD934 Mag Drill
Model#: 0934202
Stock#: HO-0934202
UPC/GTIN/EIN: 66285002303

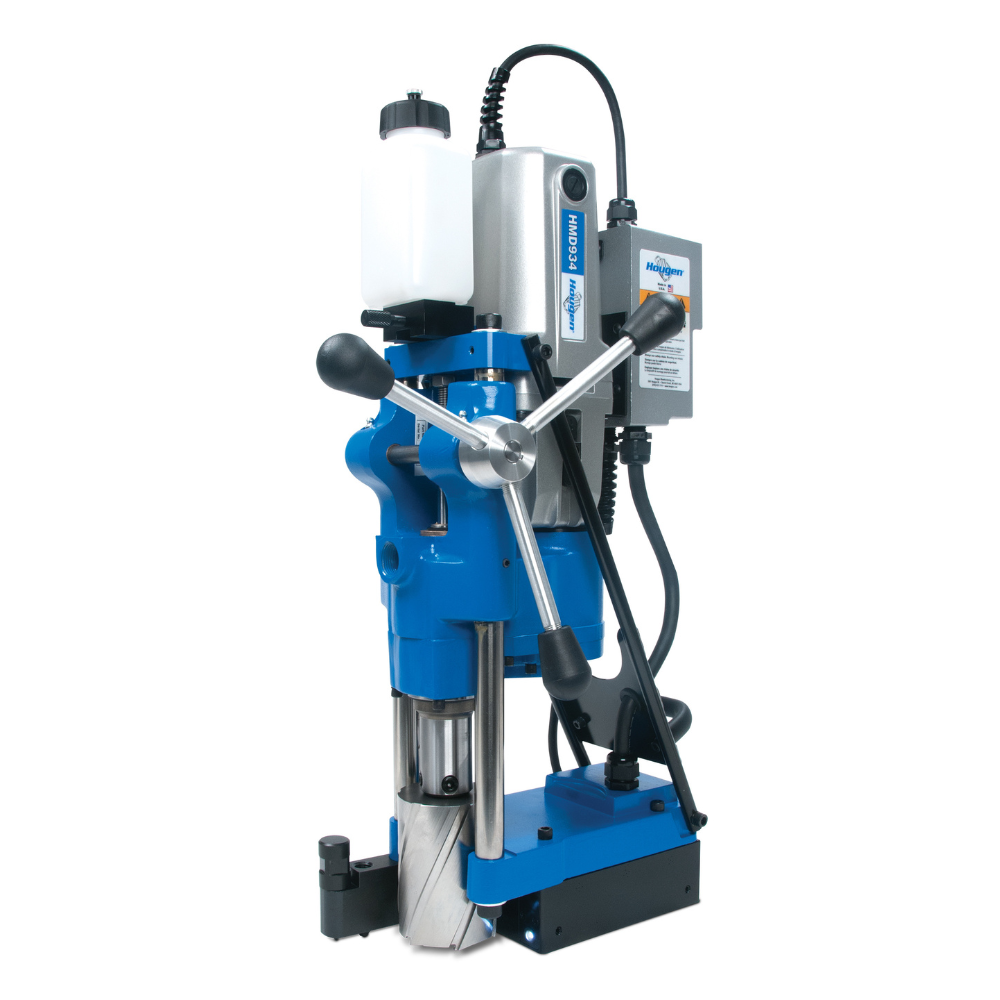

Hougen HMD934 Mag Drill
HO-0934202
$4,765.00 Sale price: $4,765.00
THIS ITEM SHIPS FOR FREE!
ON BACKORDER
Call for availability
New!
- Powerful motor with two speed gear box
- Interchangeable gears for up to four speeds
- Uses 12,000 Cutters and Copperhead Carbide annular cutters which requires no tools for installation or removal
- Pilot light
- Powerful motor with two speed gear box
- Interchangeable gears for up to four speeds
- Uses 12,000 Cutters which requires no tools for installation or removal
- Pilot light
- Two stage magnet
- Positive slug ejectionCoolant bottle included - optional pressurized system
- More holding power with impactor points
- Lift detector safety system
- Minimal maintenance requirements
- Integrated motor/gearbox design with guide rails for a rigid compact design
- Two year warranty
Accessories:
| HMD934 SPECIFICATIONS | |||
| Electrical System | 115V, 50/60 Hz - 13.5A, 1553W |
||
| Motor | 12.5A (115V), 70/120/200/332 RPM | ||
| Diameter | 3/4"- 3-1/16" (19mm - 77mm) | ||
| Depth | 4" (100mm) | ||
| Cutter/Mount | "12,000-Series" - 3/4" shank | ||
| Dimensions | 26-1/4" H x 10" W x 17-3/4" L (667mm H x 254mm W x 451mm L) |
||
| Magnet | Base | 5" W x 7" L (127mm W x 178mm L) | |
| 1" Plate (25mm) | Dead Lift 2745 lb. (1245 kg) |
Drillpoint Breakaway 1492 lb. (676 kg) |
|
| 3/8" Plate (9.5mm) | 1153 lb. (522 kg) | 627 lb. (284 kg) | |
| Weight | 72 lb. (32.6 kg) • Shipping 94 lb (42.6 kg) | ||
| Shipping Dimensions | 15.75 x 22 x 32.25" (40 x 55.9 x 81.9 cm) |
||
HO-0934202
| Manufacturer: | Hougen |
| Weight: | 94.00 |
