Model#: 47015
Stock#: KT-47015
UPC/GTIN/EIN: 092644470158
Catalog#: 34NA
$215.88
THIS ITEM SHIPS FOR FREE!
Model#: 47015
Stock#: KT-47015
UPC/GTIN/EIN: 092644470158
Catalog#: 34NA
$215.88
THIS ITEM SHIPS FOR FREE!
4,500 lbs Maximum Safe Load
.12" - .37" Minimum to Maximum Cable Diameter
4-3/16" Jaw Length
3 lbs (weight)

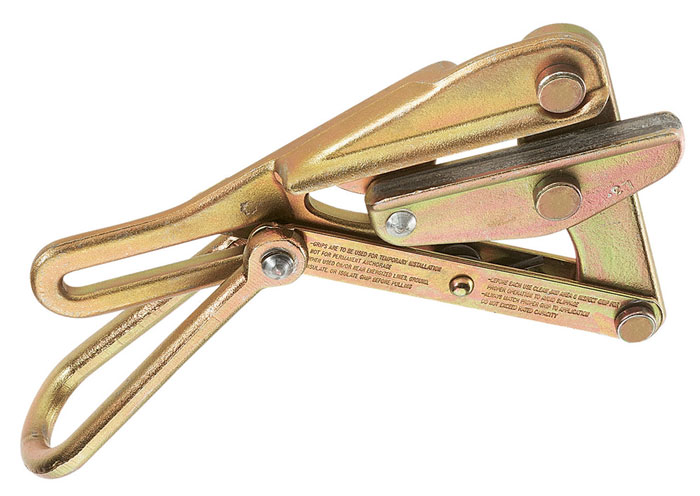

Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Other Available Grips:
| Type | Part Number | Diameter | Cable Type | Max Safe Load |
|---|---|---|---|---|
| Haven's Grip | 1604-20L | .125" - .5" | Messenger, Guy Strand | 5000 lbs |
| Haven's Grip | 1625-20 | .28" - .75" | Wire Rope | 8000 lbs |
| Chicago Grip | 1613-40 | .12" - .37" | Aircraft, EHS, Messenger, Guy Strand | 4500 lbs |
| Chicago Grip | 1628-18 | .75" - 1.0" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1628-17 | .50" - .75" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1628-16 | .31" - .62" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1684-5C | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Parallel-Jaw Grip | 1685-20 | .157" - .875" | Messenger, EHS, Coated | 4500 lbs |
| Parallel-Jaw Grip | 1685-31 | .625" - 1.25" | Messenger, EHS, Guy Strand | 7500 lbs |
| Chicago Grip | 1613-35 | #8 AWG Bare Copper - #6 AWG Bare Copper | Copper | 4500 lbs |
| Parallel-Jaw Grip with Hot Latch | KT4602 | .30" - .80" | ACSR | 10,000 lbs |
| Chicago Grip | 1684-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Chicago Grip | 1692-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Haven's Grip | 1625-20 1 | .50" - 1.0" | Wire Rope | 8000 lbs |
| Chicago Grip with Curved Jaw-Grip | 1684-74 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Chicago Grip | 1684-5F | .16" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Haven's Grip | 1625-20-7/8 | .38" - .88" | Wire Rope | 8000 lbs |
| Parallel Jaw Grip with Hot Latch | KT4802 | .70" - 1.25" | ACSR | 12,000 lbs |
| Chicago Grip with Hot-Line Latch | 1684-5H | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
