Model#: C-CLMU-04451W

Stock#: C-CLMU-04451W



Little Mule Wire Grips

Multiple Options Available

$107.99 to $376.99

Please select an option below

New!
  • VERSATILE: All models are rated for a variety of wire sizes and types, so fewer grip changes are required.
  • NO LOCK-UPS: Grips open easily and release instantly to quickly insert or remove the wire.
  • LARGE HANDLE EYE OPENING: Accepts standard hooks and easily attaches to tackle blocks.

Capacity *

Grip Model Type *

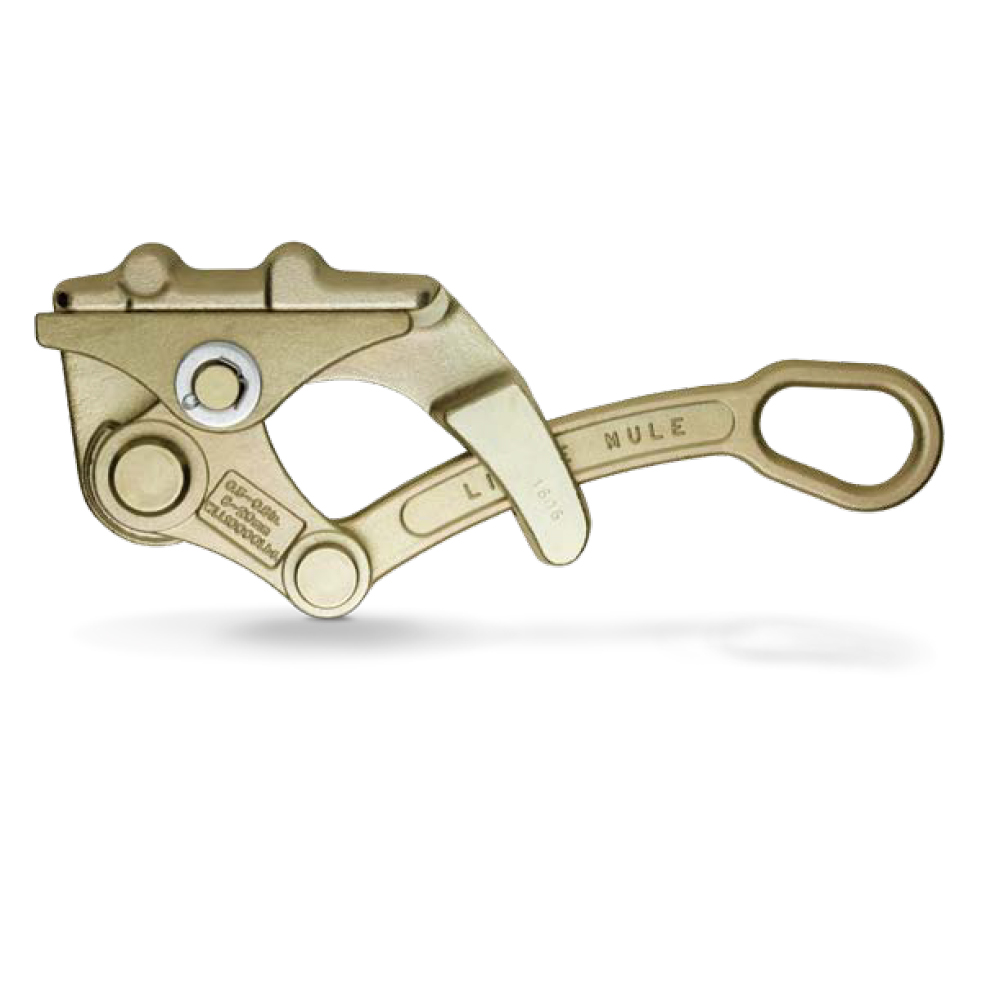

Little Mule Wire Grips

The Little Mule Wire Grips can be used with a variety of wire sizes and types, so fewer grip changes are required. They also have large handle eye openings for easy opening, attaching, and releasing to prevent lock-ups. Made of forged steel, Little Mule grips are both durable and lightweight, making them ideal for a variety of utility jobs.

Features:

  • VERSATILE: All models are rated for a variety of wire sizes and types, so fewer grip changes are required.
  • NO LOCK-UPS: Grips open easily and release instantly to quickly insert or remove the wire.
  • LARGE HANDLE EYE OPENING: Accepts standard hooks and easily attaches to tackle blocks.
  • FORGED STEEL CONSTRUCTION: Durable yet lightweight.
  • YELLOW CHROMATE FINISH: Protects components from rust and corrosion.
  • MODELS TO FIT WIRE GAUGE SIZES OF .04 IN. TO 1.25 IN.
  • Bulldog-Type Jaw or Parallel Jaw
  • Standard and Hot Line Models

Available Options:

  • Capacity (lbs)
    • 1,000 lbs
    • 2,000lbs
    • 5,000lbs
    • 10,000 lbs
    • 12,000 lbs
  • Grip Type:
    • Standard Model (Spring-Loaded Gate, Un-Notched Handle)
    • Hot Line Model (Spring-Loaded Gate, Notched Handle)

Specifications:

Capacity (lbs.) Model/Product Code Applicable Cable Types Wire Size
Bare & Stranded Copper ACSR & Aluminum Conductor EHSC & Messenger Guy Wire Minimum Maximum
Size in. (mm) Gauge Size in. (mm) Gauge
1,000 LMG1000/04451W     X 0.04 (1.02) 18AWG 0.394 (10.01) 1/0AWG
2,000 LMG2000/04452W X X X 0.109 (15.09) 8AWG 0.594 (15.09) 4/0AWG
5,000 LMG4500/04453W X X   0.18 (4.57) 6AWG 0.60 (15.24) 4/0AWG
10,000 LMG4600/04459W X X   0.30 (7.62) 1AWG 0.80 (20.32) 450MCM
10,000 LMG4601/04460W X X   0.30 (7.62) 1AWG 0.80 (20.32) 450MCM
12,000 LMG4800/04471W X X   0.70 (17.77) 397MCM 1.25 (32) 1130MCM
12,000 LMG4801/04472W X X   0.70 (17.77) 397MCM 1.25 (32) 1130MCM



Model/Product Code Grip Type & Features Jaw & Teeth Configurations Handle Eye Opening Diameter (in.)
Model Type Gate Style Handle Jaw Type/ Teeth Type

Jaw Length:

Teeth(in.) / Mount(in.)

Standard Hot Line Non-Spring Loaded Spring Loaded Un-Notched Notched
LMG1000/04451W X     X X   Bulldog/Aggressive 1.38 / 1.55 1.02
LMG2000/04452W X     X X   Bulldog/Aggressive 1.34 / 1.86 1.0 x 1.5
LMG4500/04453W X     X X   Parallel/Fine 4.10 / 3.64 1.25 x 2.0
LMG4600/04459W X     X X   Parallel/Fine 5.08 / 5.03 1.35 x 2.25
LMG4601/04460W   X   X   X Parallel/Fine 5.08 / 5.03 1.35 x 2.25
LMG4800/04471W X     X X   Parallel/Fine 5.57 / 5.64 1.35 x 2.25
LMG4801/04472W   X   X   X Parallel/Fine 5.57 / 5.64 1.35 x 2.25

C-CLMU-04451W
Finish: Yellow Chromate Finish
Manufacturer: Little Mule
Material: Forged Steel
CLMU-04451W
CLMU-04452W
CLMU-04453W
CLMU-04459W
CLMU-04460W
CLMU-04471W
CLMU-04472W
