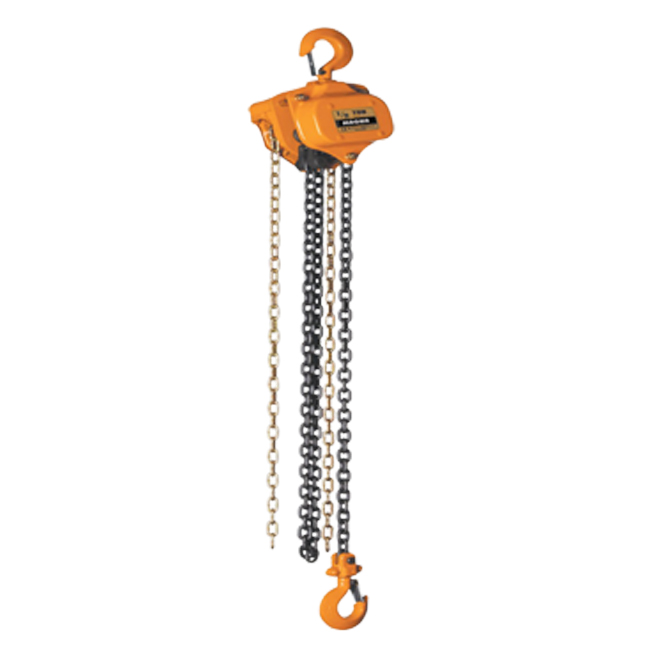

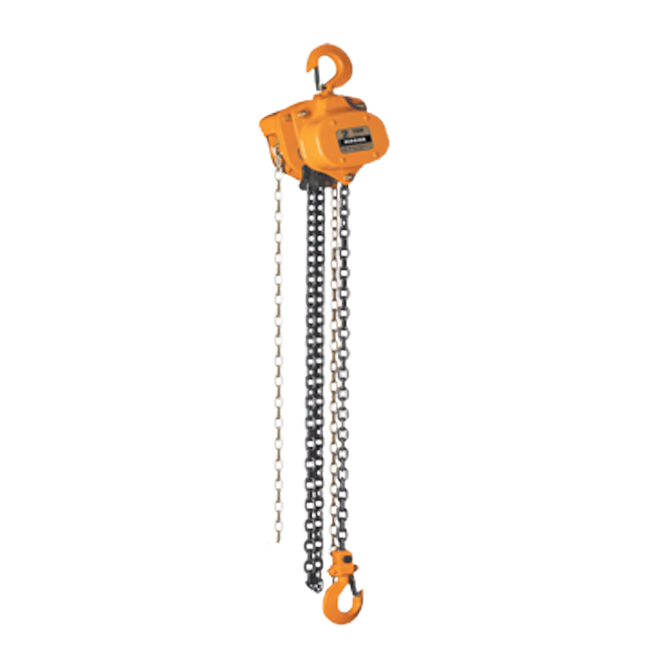

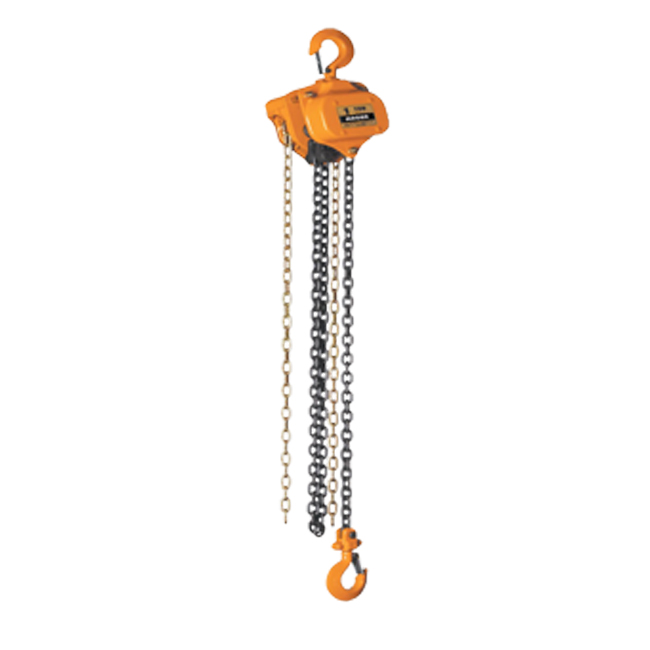

The MAGNA Lifting Products Hand Chain Hoist is designed to meet the most demanding jobs. The large brake surface area is designed for increased performance. The stamped steel casing is designed for reduced weight and with high-strength hardware for increased durability. The machined and case hardened gears with deep-cut teeth for increased strength. The simplicity and reliability of this hoist come from the minimal parts to allow for simple inexpensive repairs. This is backed up by the spring and anchor system which is designed to make repairs and modifications.

Features:

• Load tested to 150% of rated capacity
• Meets ANSI/ASME standards
• Completely repairable with easy access design (1/4 ton is not repairable)
• Low temperature grease functions at -45°C (-49° F)

Available Load Ratings:

• 1/2 Ton: (MLP-CH050)
• 1 Ton: (MLP-CH100)
• 1-1/2 Ton: (MLP-CH150
• 2 Ton: MLP-CH200)
• 3 Ton: (MLP-CH300)
• 3 Ton (Single Fall): (MLP-CH300SF)
• 5 Ton: (MLP-CH500)
• 7.5 Ton: (MLP-CH750)
• 10 Ton: (MLP-CH1000)
• 15 Ton: (MLP-CH1500)
• 20 Ton: (MLP-CH2000)

Options (Click Here to Request a Quote):

• Overload slip clutch
• Lug mount for low headroom
• Nylon chain bag available for up to 5 ton capacity
• High Capacity Hoists up to 50 ton
• Self-locking hooks (1-1/2 Ton)
• USA manufactured, Grade 100 load chain available for a majority of hoist models
• Electro galvanized load chain for more corrosive environments
• Custom chain lengths
• Repair Parts
