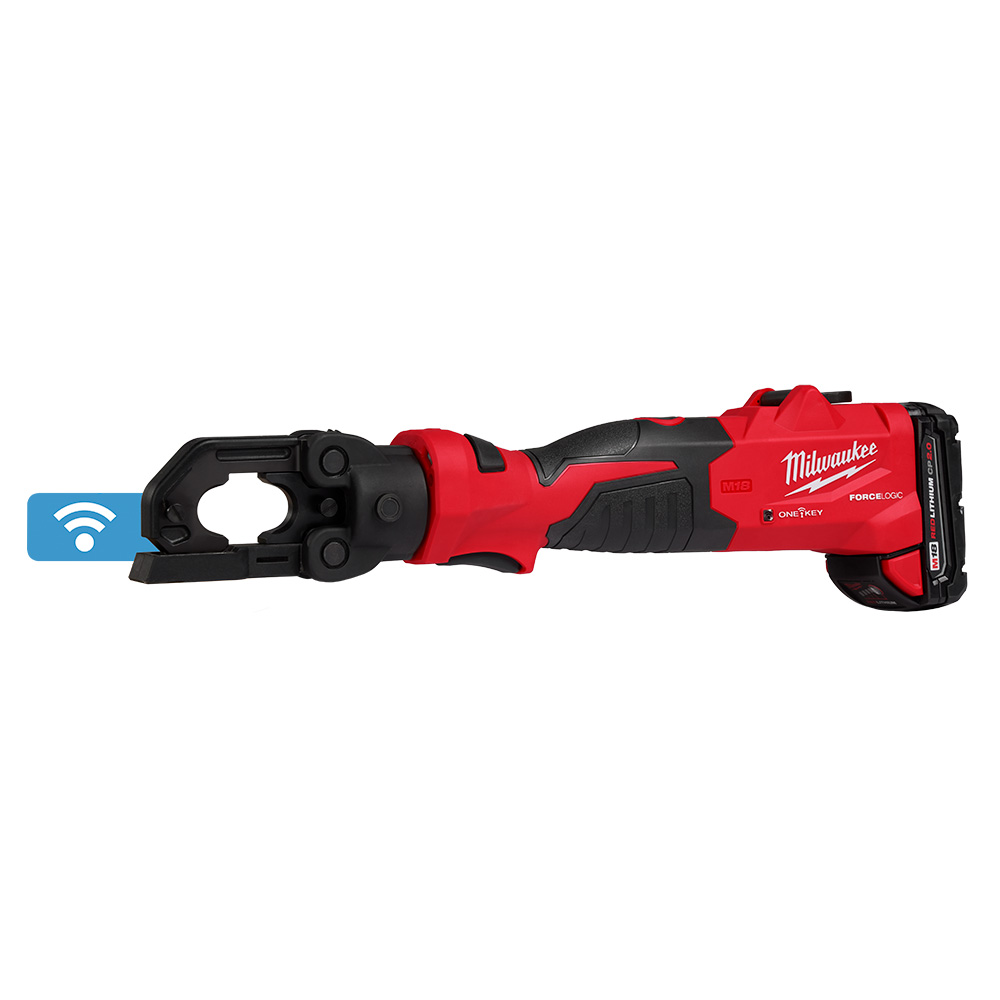

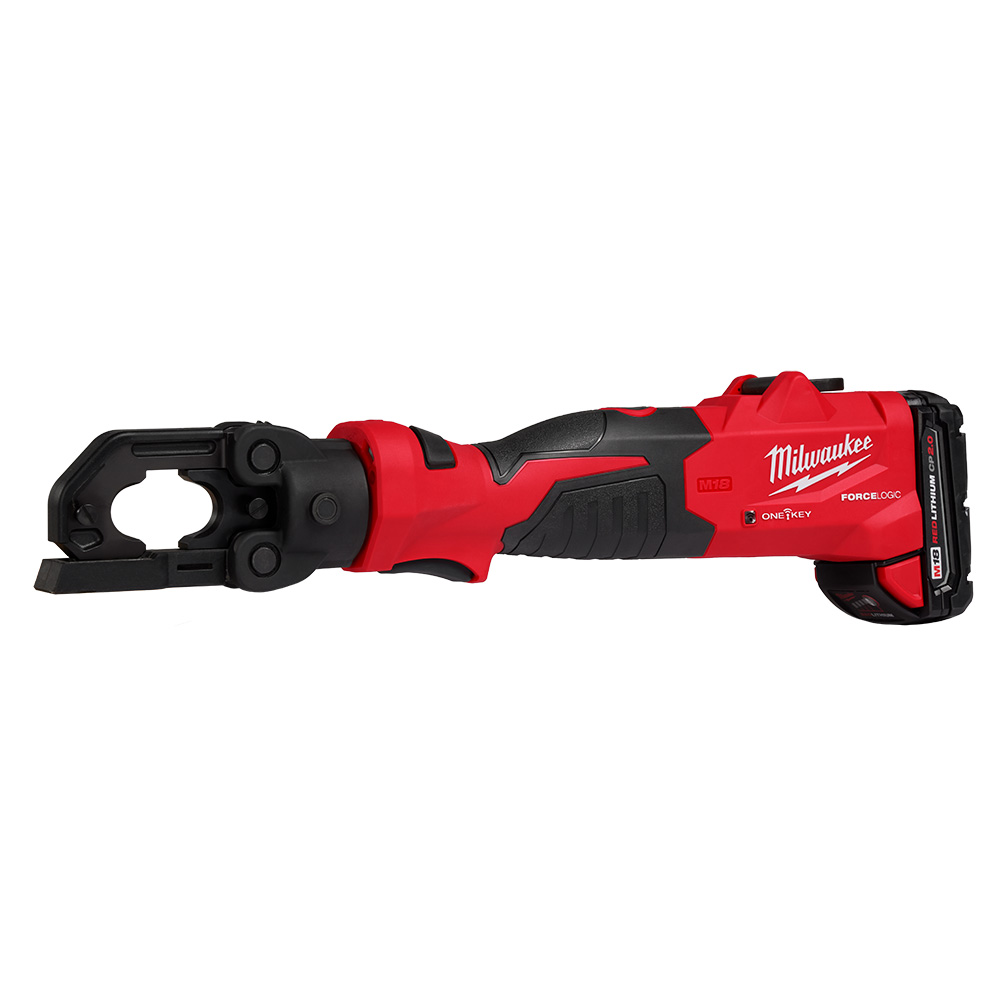

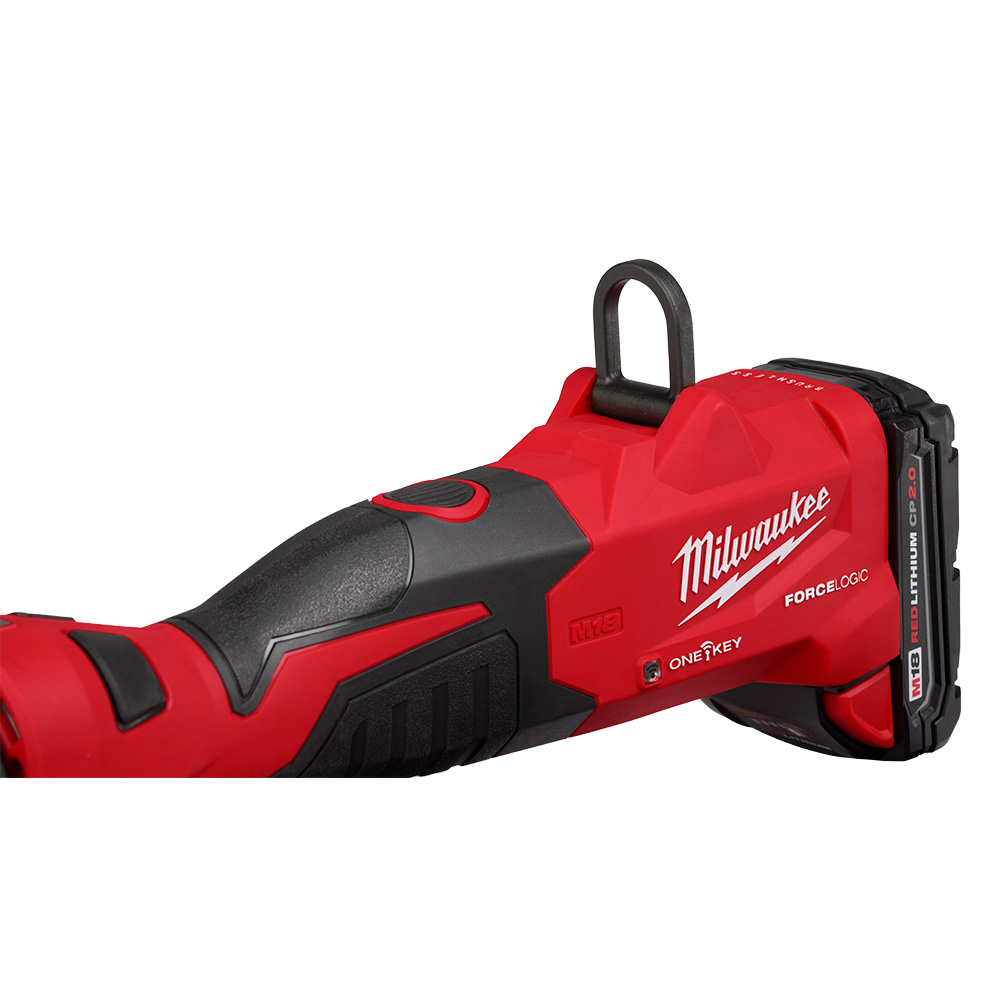

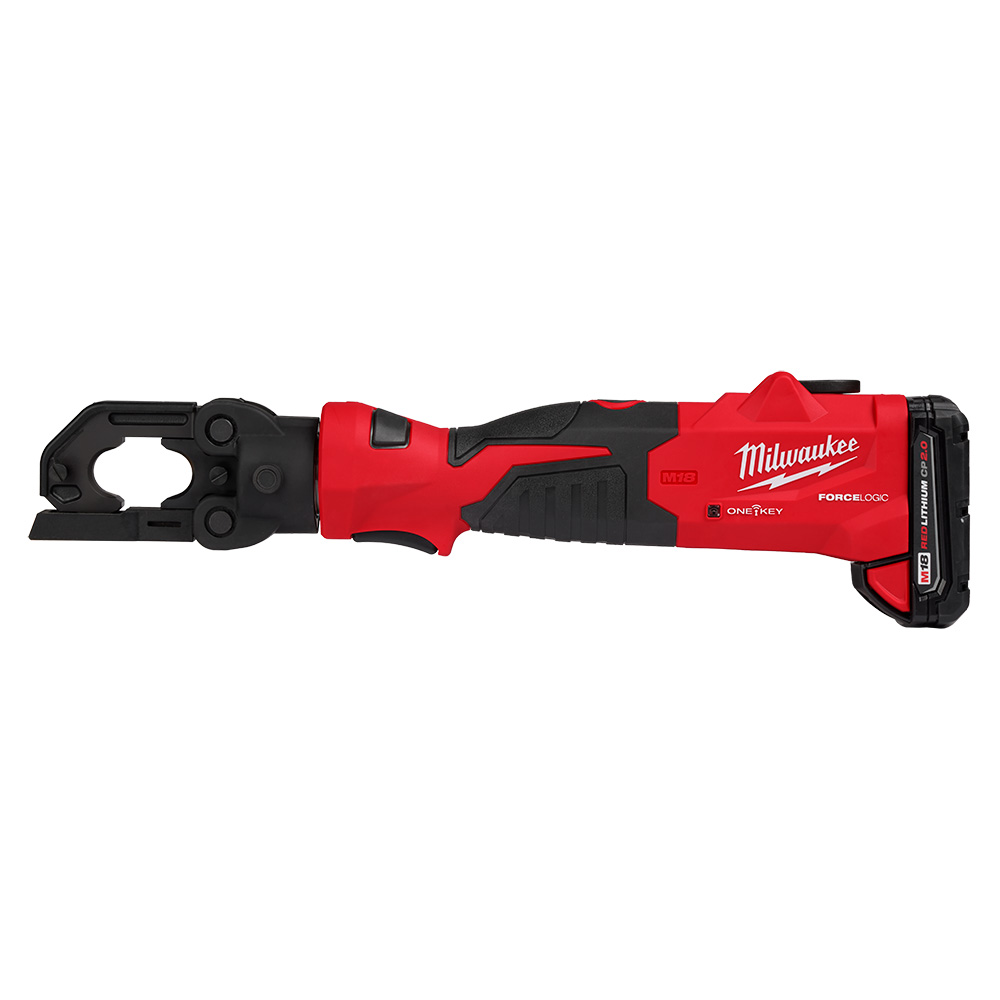

Milwaukee M18 FORCE LOGIC 6T Latched Linear Utility Crimper

The M18 FORCE LOGIC 6T Latched Linear Utility Crimper is The Easiest Way To Make Uniform Crimps. The inline design and 340° rotating head deliver unmatched access into confined spaces and maximum control in multiple orientations. An enlarged trigger and dual electronic release buttons enable left- and right-handed users to easily activate the tool while wearing Class 3 gloves without changing hand position. The latched head is easily opened and then secured to ensure that only the intended wire gets crimped.

The crimper utilizes an industry-standard D3 die index allowing it to crimp up to 4/0 line taps. More space between the die seats enables users to insert and remove dies while the latch is closed and easily align on large connectors. Predictive Force Monitoring (PFM) constantly measures output force to ensure full pressure is reached and that the output force is the same over the life of the tool delivering consistently uniform crimps.

The crimper also performs a pre-crimp battery check to ensure that the battery has enough charge to complete a full crimp. The tool is equipped with fully enclosed high-speed hydraulics, a POWERSTATE Brushless Motor, REDLINK Electronics, and REDLITHIUM Batteries, which provide unmatched reliability in the toughest conditions. Integrated with the ONE KEY Technology, the crimper stores real-time crimp data.

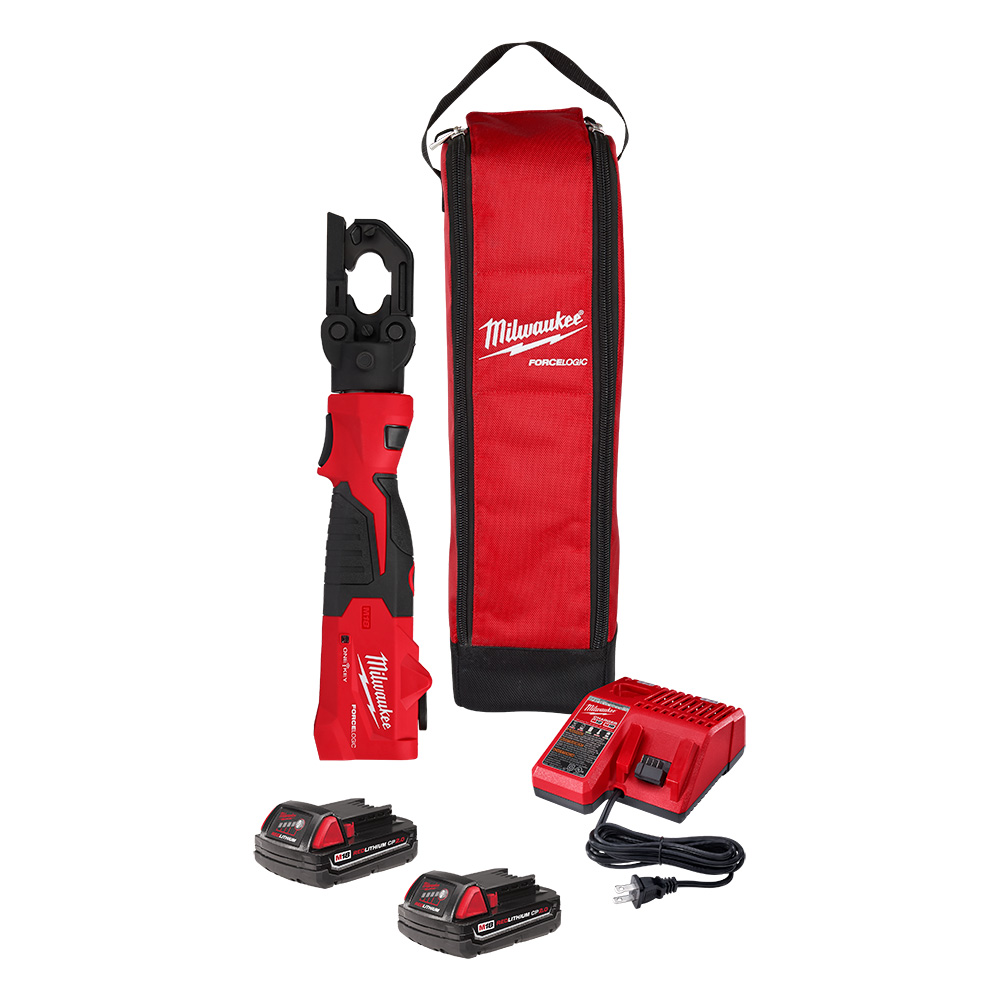

What's Included:

• (1) M18 FORCE LOGIC 6T Latched Linear Utility Crimper
• (2) M18 REDLITHIUM CP2.0 Battery (48-11-1820)
• (1) M18 & M12 Multi-Voltage Charger (48-59-1812)
• (1) 6T Utility Crimper & Cutter Bag (48-22-8277)

Features:

• Inline design delivers unmatched access
• Lightest weight allows maximum control
• PREDICTIVE FORCE MONITORING (PFM) ensures full pressure
• Inline design and 340° rotating head for unmatched access into confined spaces
• Enlarged trigger and slim grip area designed specifically for use with Class 3 gloves
• Easy-to-reach dual electronic release buttons enable easy activation for right- and left-handed users
• Compatible with all industry-standard W-Style dies
• Optimized latched head enables dies to be inserted while the latch is closed
• Hydraulic system optimized for consistent performance from -4° to 140° F

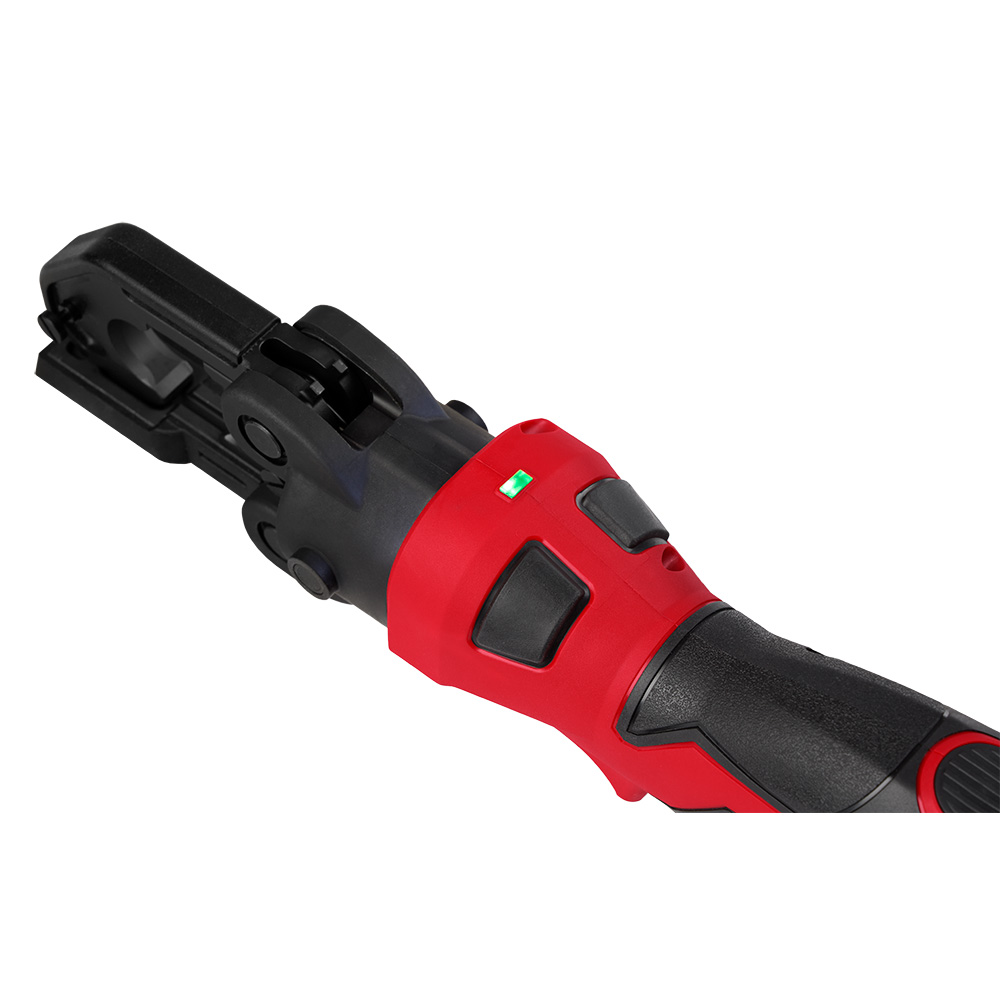

• Instant verification of a successful cycle with Green LED
• Pre-crimp battery check automatically ensures enough charge to complete each crimp
• Records & Stores Every Crimp Made for Professional Report Building through ONE-KEY
• Compatible with the entire M18 System

Specifications:

• Voltage: 18V
• Battery Type: 18 Volt Lithium Ion
• Tool Warranty: 5 Year Tool, 2 Year Battery
• Power Source: Cordless
• Motor Type: Brushless
• Length: 17.25 in
• Weight: 6.3 lb
• Height: 3.75 in
• Width: 3 in
• Brushless: Yes
• Battery System: M18
