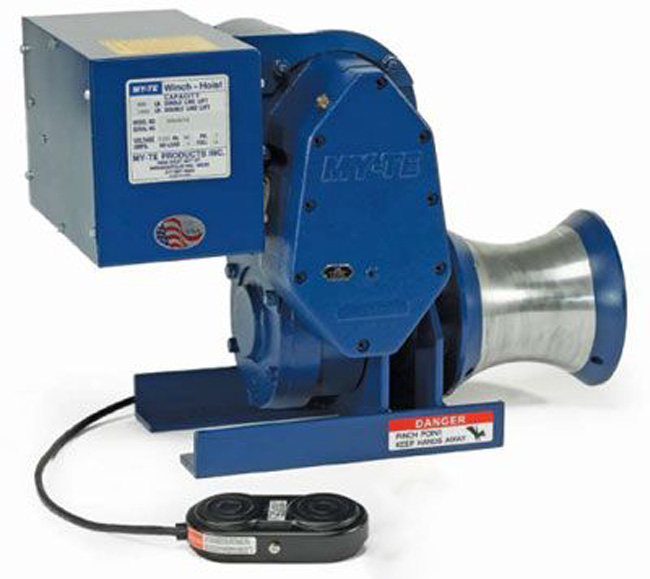

My-Te 300AB Utility Capstan Electric Winch-Hoist

My-Te's 300AB Utility Capstan Electrivc Winch Hoist is tough and portable making it ideal for utility truck installation, overhead line crews, tower and antenna erection, and transformer replacement. This electric hoist maintains an 800 lb single line or a 1,600 lb double line lift capacity with a capstan rope drum. Choose from a 10' pendant hand control (742035) or foot control (742036) to operate the hoist.

Features:

• 800-lb single-line or 1,600-lb double-line lift
• Trifecta system 115 Volt AC brake motor with triple brake system for instant stopping
• Worm gear reduction for positive load holding
• Portable and rugged
• Low voltage 10' pendant hand or foot control
• Capstan rope drum
• Frictionless bearings
• Heavy-duty angle base drilled for four 1/2" bolts (9/16" mounting holes) with no welding required
• Fully sealed aluminum housings, with precision-cut gears, run in an oil bath
• Hardened steel worm and forged bronze worm gear holds load in position when stopped.•
• Stress-proof drum shaft• Frictionless bearings
• 286:1 Construction



Specifications:

• Universal 18,500 RPM reversible 1.25 HP brake motor (no-load speed)
• 15' power cord plugs into any 115 Volt AC grounded outlet
• Maintain at least three wraps of rope on capstan drum when in use. Heavier loads may require four wraps of rope.
• 6 amp – No load
• 20 amp – Full load
• Speed: 59 FPM: No-load drum speed, 30 FPM: 500 lbs
• Duty Cycle: 25% – 15 min/hr when operating at full load.
