Petzl Am'D Asymmetrical Aluminum Carabiner

The Petzl Am'D Asymmetrical Aluminum Carabiner has a D shape that is best used for connection to fall protection equipment. It has a fluid interior to avoid any snagging and the keylock system allows for a catch-free carabiner. It comes in five types of locking systems: triact-lock, ball-lock, pin-lock, twist-lock, and screw-lock, and in two colors: black and gray.

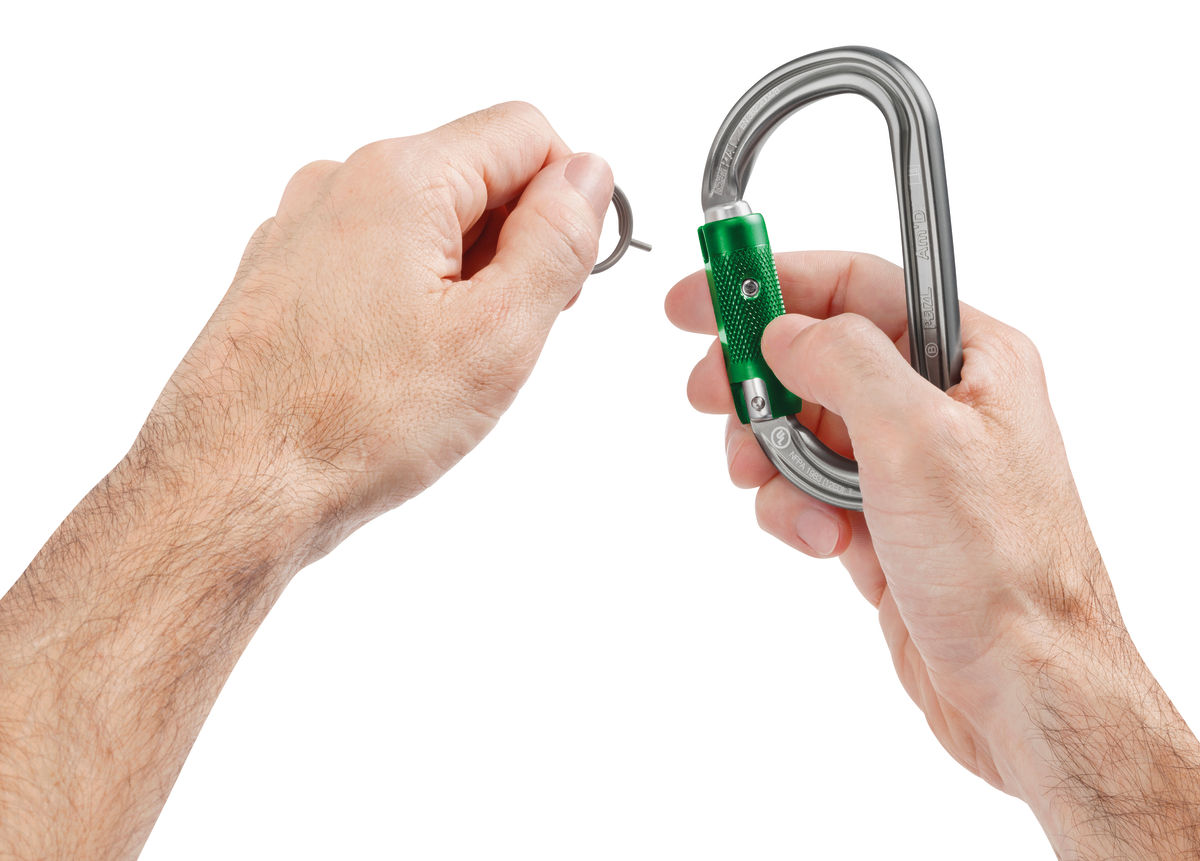

The pin-lock system is unlocked only with a special tool that limits the risk of the user opening the carabiner accidentally. The Am'D Pin-Lock Carabiner has an unlocking tool and an installable opening pin that can be attached to any glove if repeated and constant use is necessary.

Features:

• D shape is best used for connection to equipment such as descenders, positioning lanyards, etc.
• Made of lightweight Aluminum
• Can be used with the Petzl CAPTIV positioning bar to keep it integrated with the device, and to limit the risk of it flipping
• Easy handling:
  • Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  • Keylock system to avoid any involuntary snagging of the carabiner
• H cross-section:
  • Ensures an optimal strength/weight ratio
  • Protects markings from abrasion
• Comes in five types of locking systems and two colors

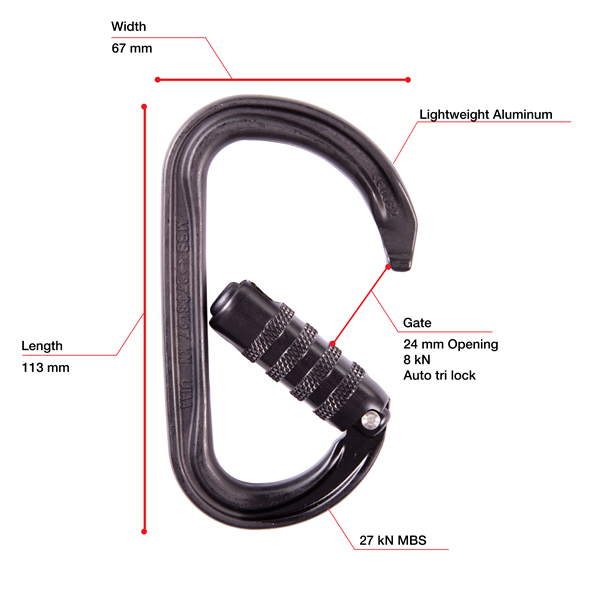

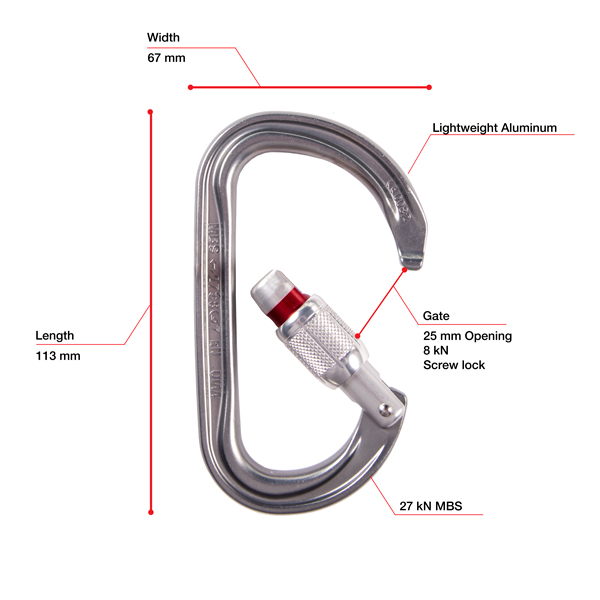

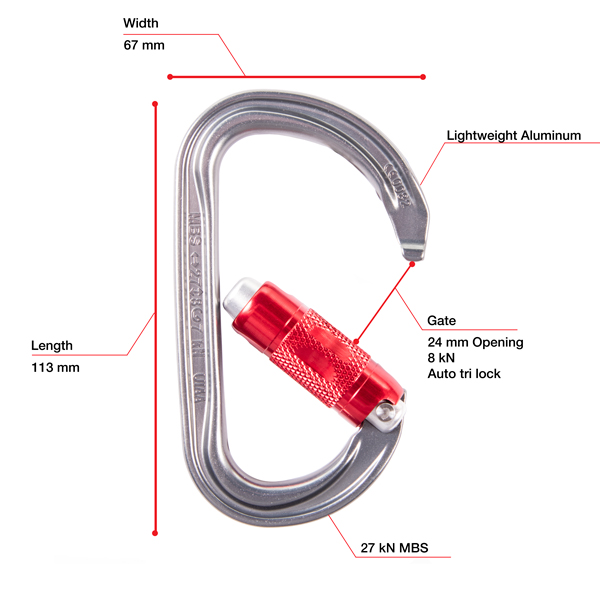

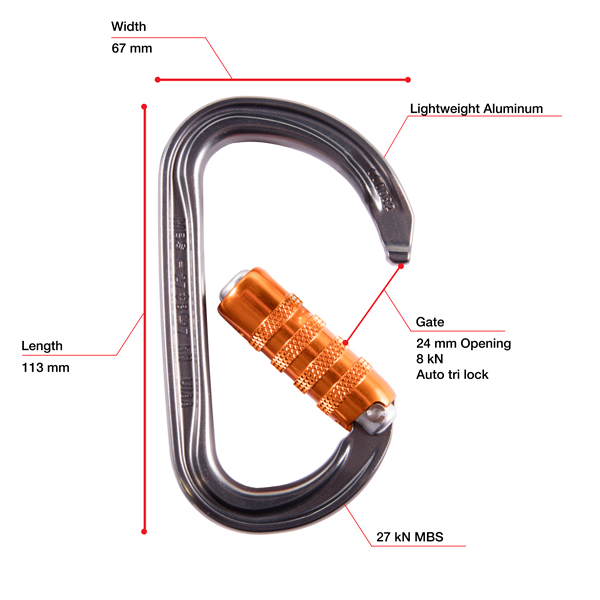

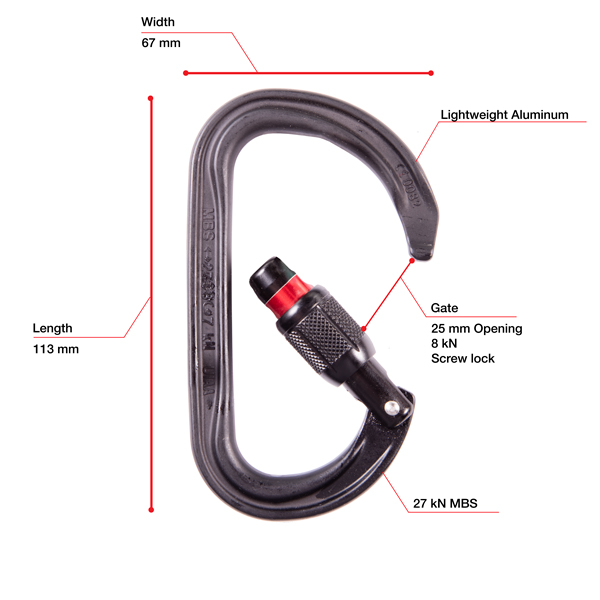

Specifications:

• Major Axis Strength: 27 kN
• Minor Axis Strength: 8 kN
• Gate Strength: 7 kN
• Gate Opening:
  • Triact-Lock: 24 mm
  • Screw-Lock, Ball-Lock, Twist-Lock, and Pin-Lock: 25 mm
• Weight:
  • Triact-Lock, Twist-Lock, and Ball-Lock: 75 g
  • Screw-Lock: 70 g
  • Pin-Lock: 80 G
• Material: Aluminum

Certifications:

• CE EN 362
• EAC
• NFPA 1983 Tehnical use

Available Options:

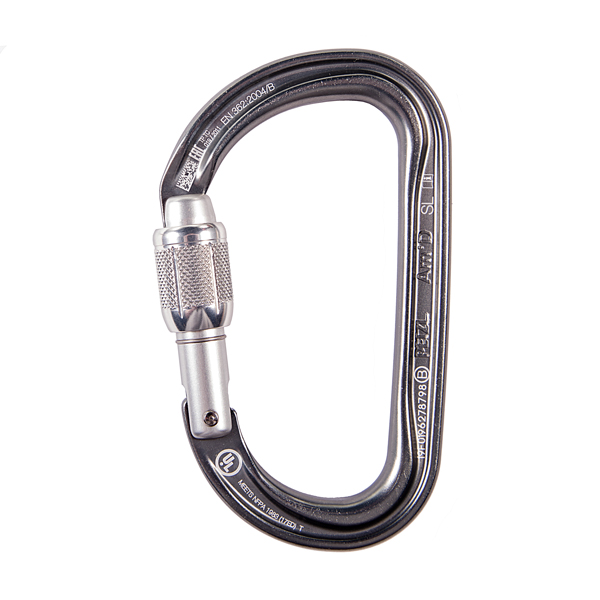

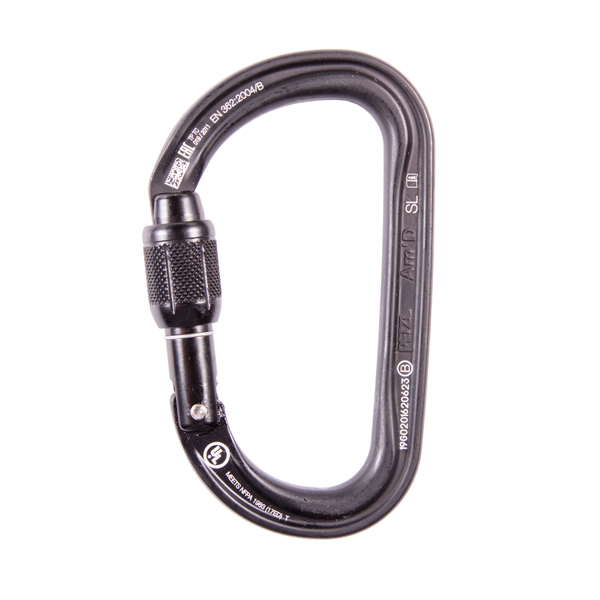

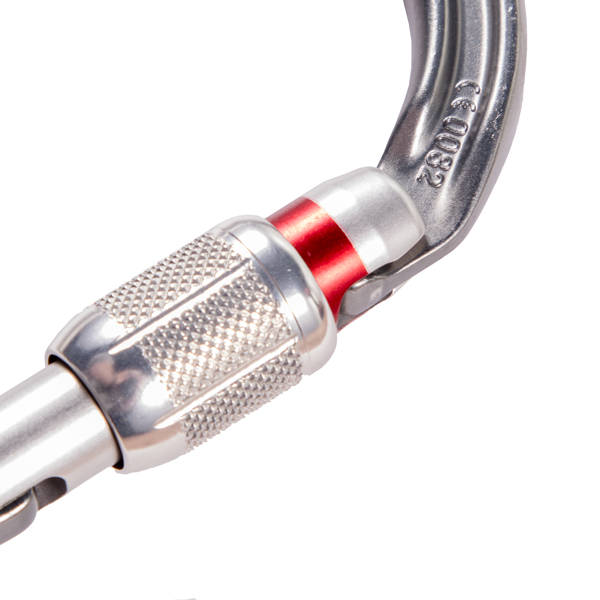

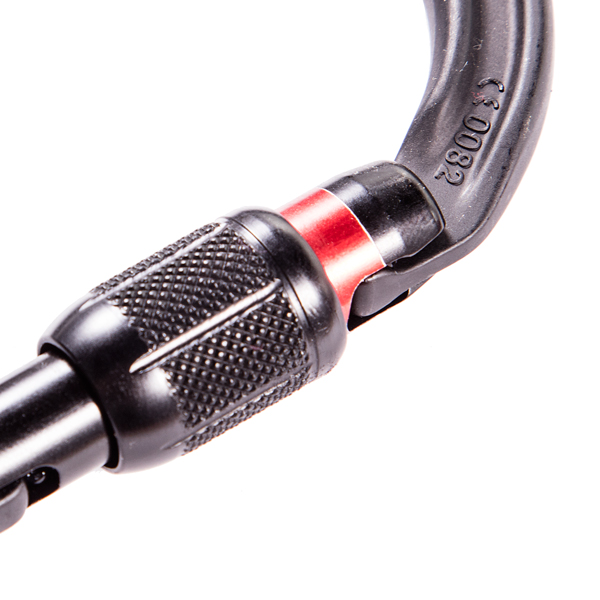

• Screw-Lock

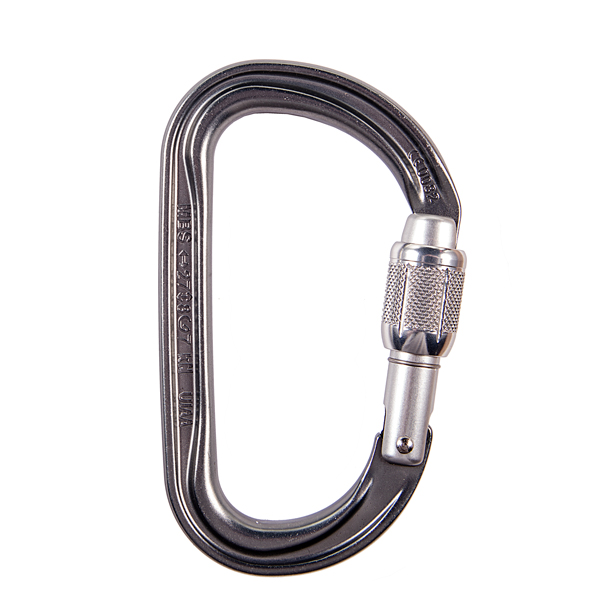

  • Gray: M34A SL

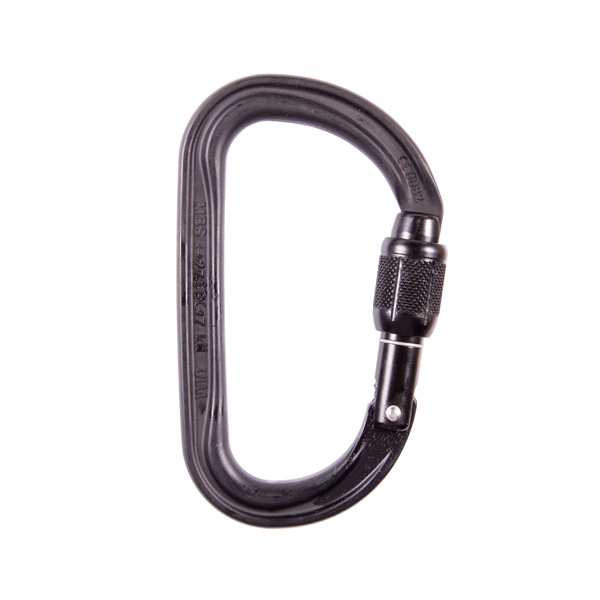

  • Black: M34A SLN

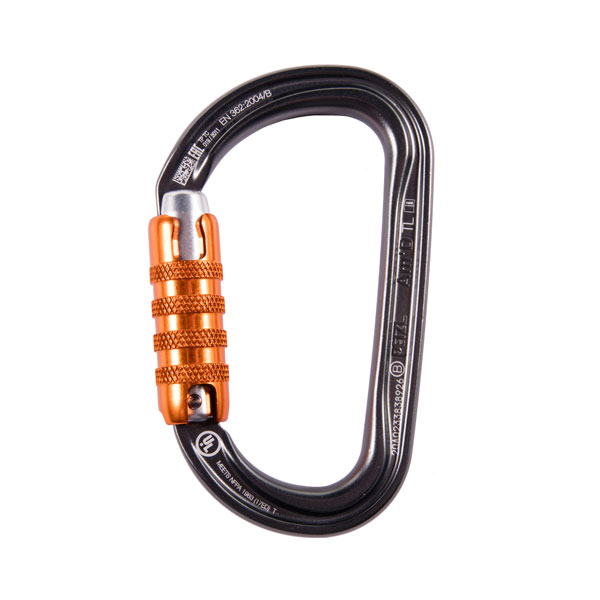

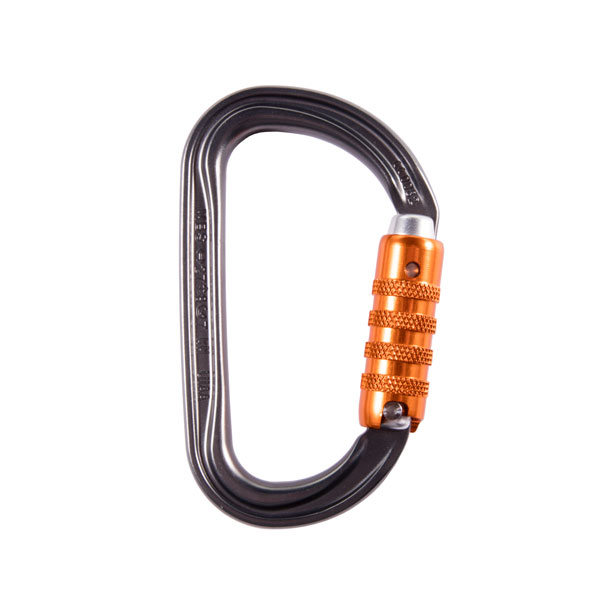

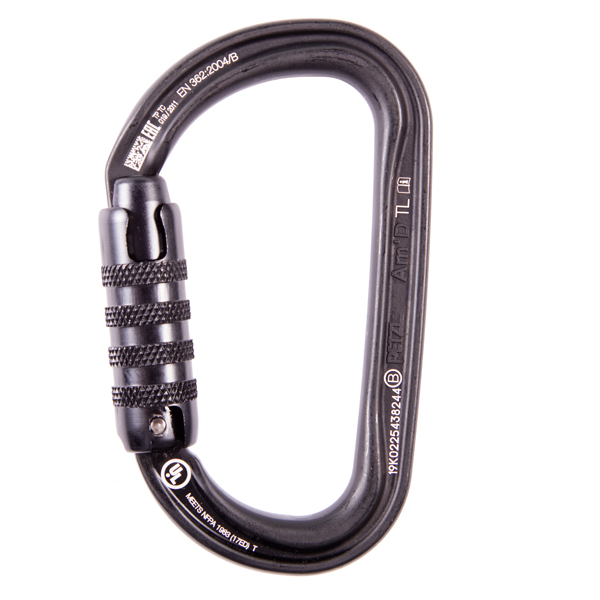

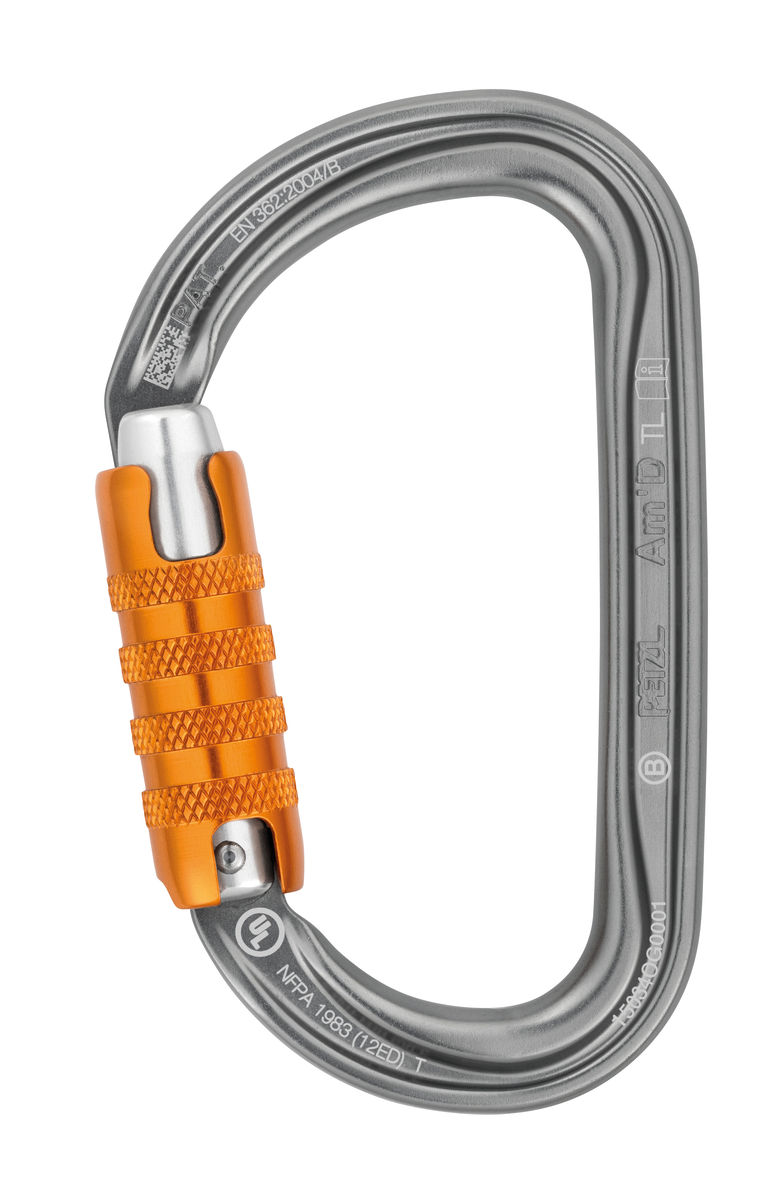

• Triact-Lock
  • Gray: M34A TL

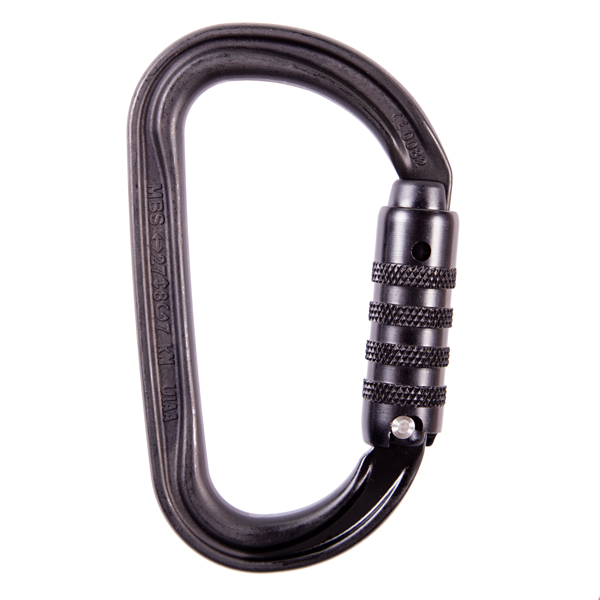

  • Black: M34A TLN
  • Gold: M34A TLY

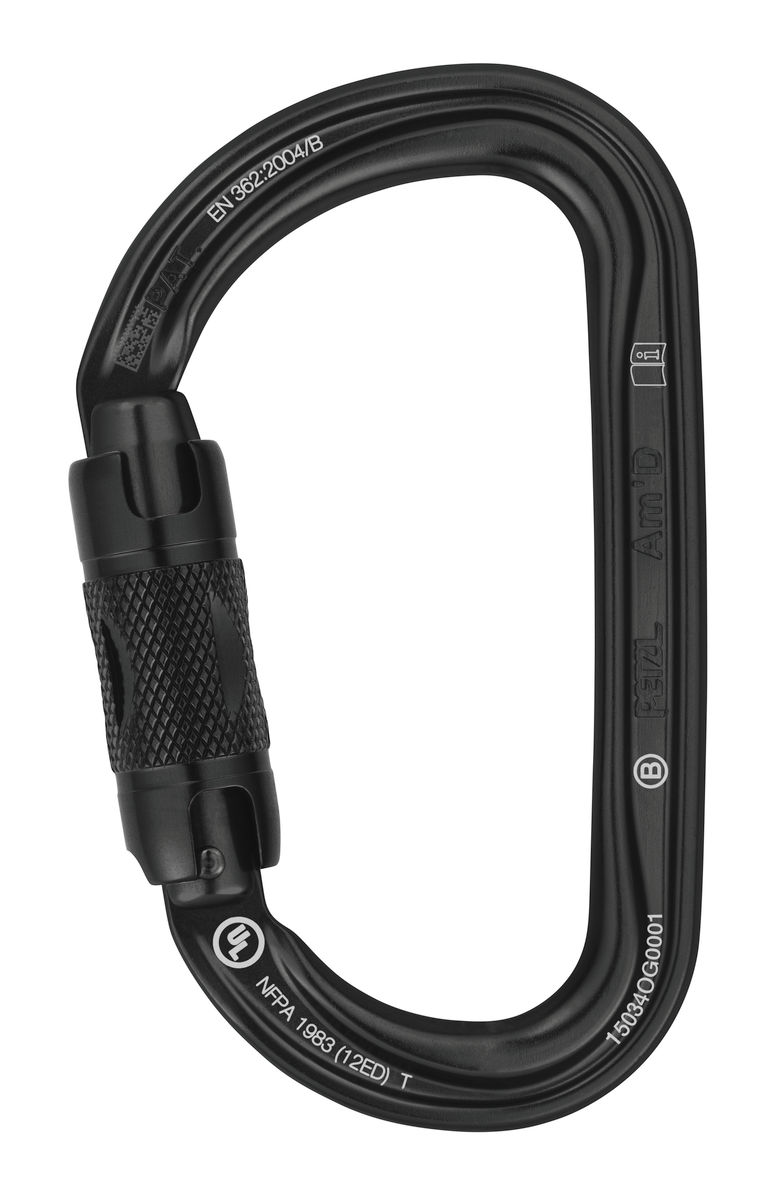

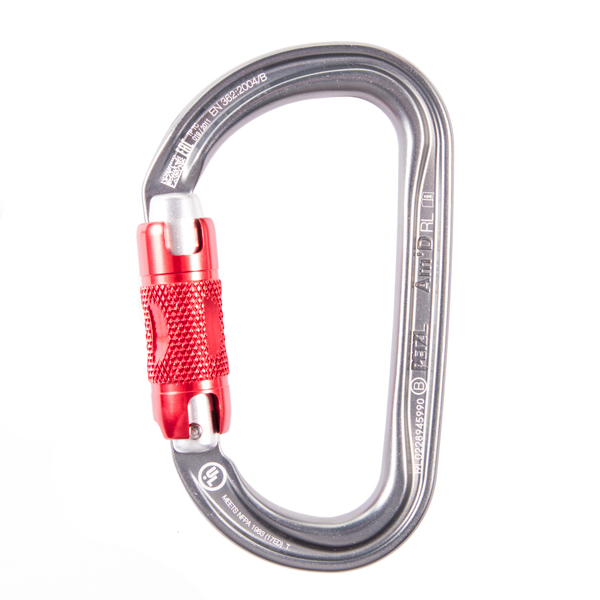

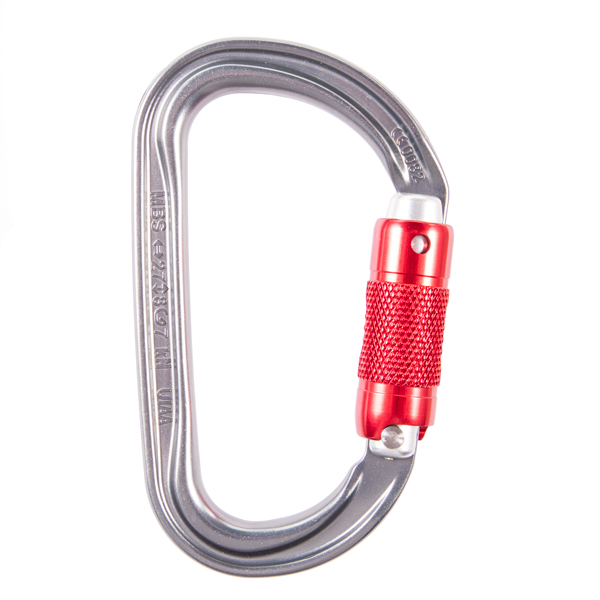

• Twist-Lock
  • Gray: M34A RL
  • Black: M34A RLN

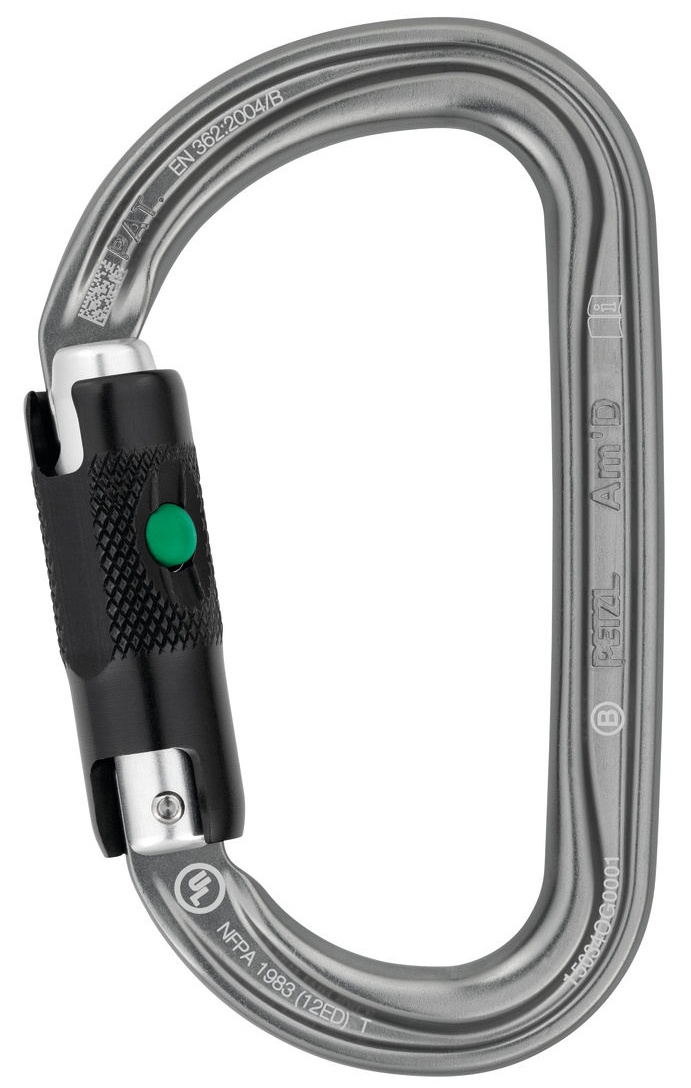

• Ball-Lock
  • Gray: M33A BL
  • Gold: M34A BLY

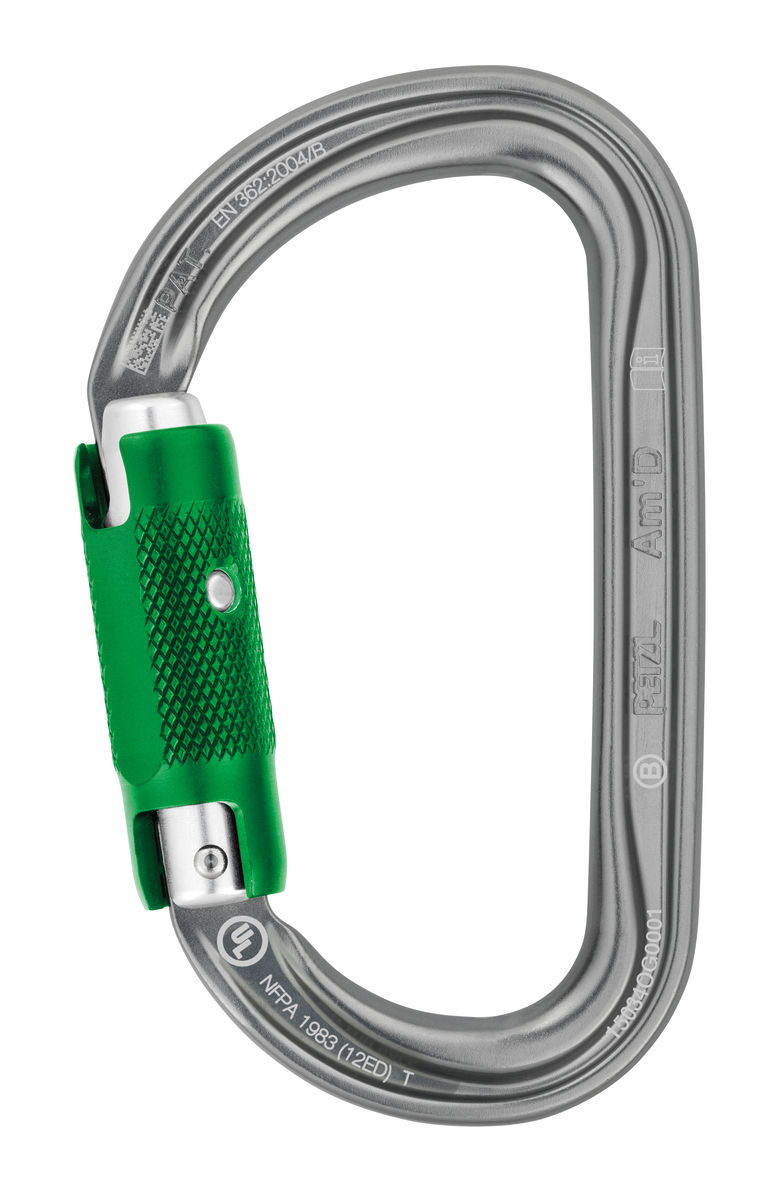

• Pin-Lock
  • Gray: M34A PL
