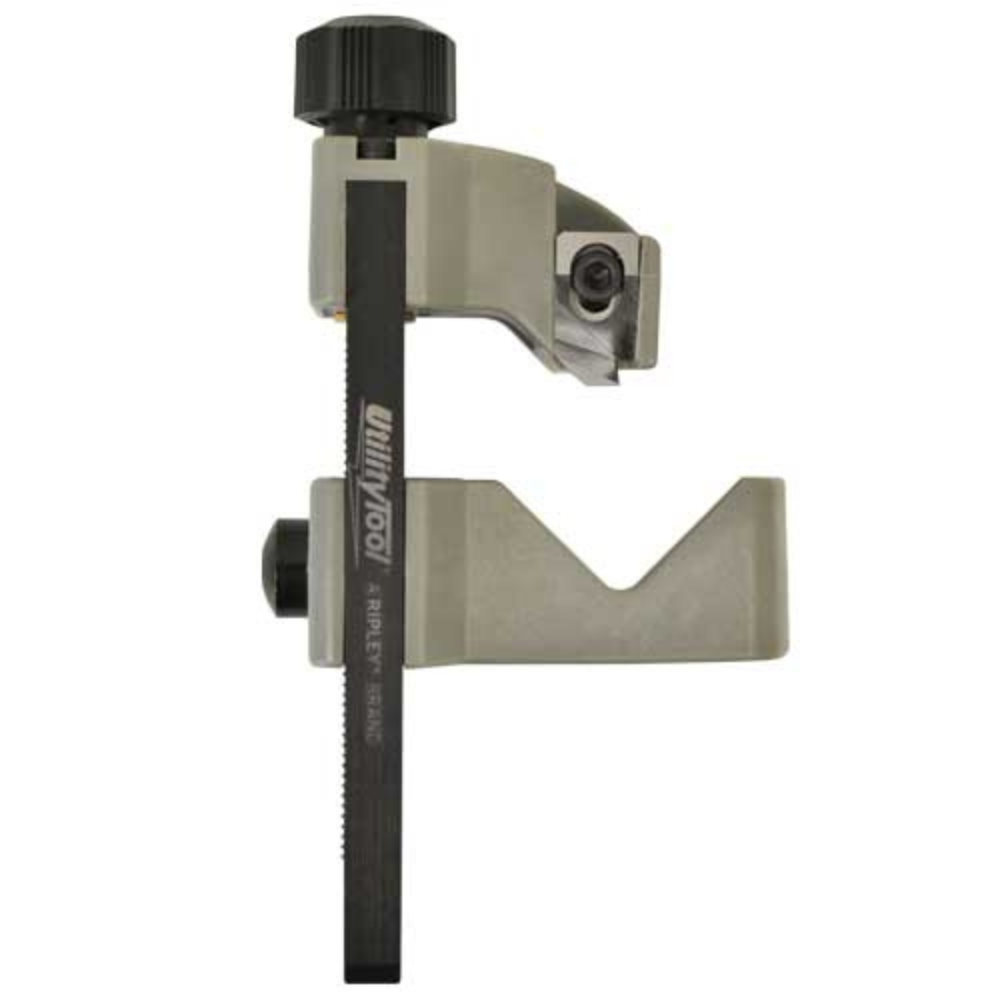

Ripley US10 45-Degree Cable Insulation Chamfering Tool

The Ripley US10 45-Degree Cable Insulation Chamfering Tool utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction, and PTFE-coated aluminum frame provide a stable and precise clamping platform in any space.

Features:

• Easily adjusts to suit XLPE & EPR insulation materials on 0.5″ to 2.36″ (12.7 mm to 60 mm) cable diameters
• 30-degree or 45-degree angle bevel models perform with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
• Equipped with a safe, recessed blade to prevent potential injury & blade damage
• Features a replaceable, machined & ground tool steel blade

Compatibility:

• Cable Compatibility: Primary Distribution Underground
• Color: Gray
• Cable Access: End
• Insulation Materials: XLPE, EPR
• Min. Voltage: 15 kV
• Max. Voltage: 35 kV

Specifications:

• Material: Impact-Resistant Polymer
• Replacement Blades: US10-7501
• O.D. Over Insulation: 0.5" - 2.36" (
