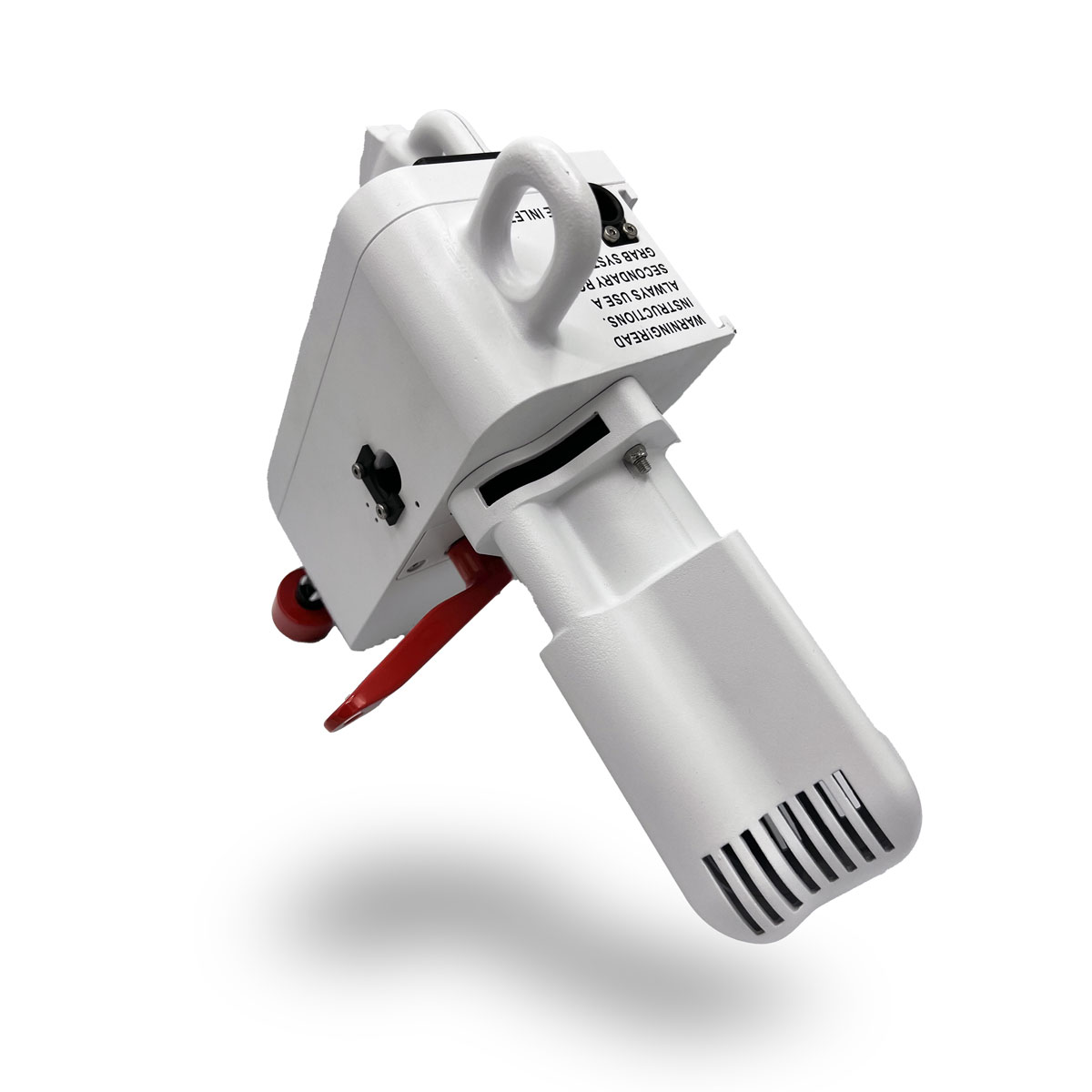

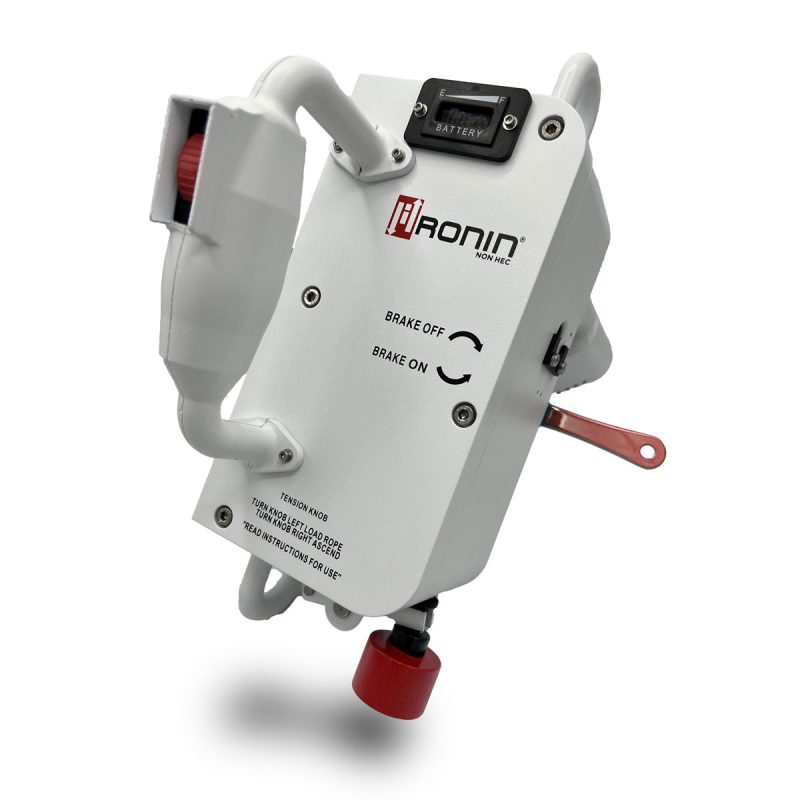

Ronin Non-Human Rigging Ascender Kit

The Ronin Non-Human Rigging Ascender Kit is a dedicated Lift that will handle any material hauling needs you have. It has been designed for companies that separate their material-hauling lifting equipment from their personnel lifting equipment The safe working load is 400 lbs. (181 kg) but you can add mechanical advantages up to 4:1, which means loads of up to 1600 lbs. (726kg) can be accommodated. Both the Ronin Lift anchor points are rated at 5,000 lbs. for confident rigging.

With the wireless remote function, your teams can raise or lower loads from a safe distance. The variable speed control is smooth and makes it easy to control the heaviest loads. Winch loads in complete confidence with the Ronin NON-HEC Lift. Pair up your NON-HEC Lift with a Pole Mount, Hitch Mount, or Tripod Mount.

Features:

• Reverse Function
• White Powder Coat Finish to Designate For Material Hauling
• 400 lbs. (181 kg) Safe Working Load
• Variable Speed Control (0.5 – 1.5 ft./sec)
• Hands-Free Braking System
• Gravity Feed Descent
• Automatic End Feed Rope Loading
• Safely Secures Rope inside the Lift & Prevents Accidental Detachment
• Allows for Angled Ascents
• Hot-Swappable Battery
• Lithium Rechargeable Battery
• Water Resistant IP54 Rating
• Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
• Mechanical Advantage Allowed up to 4:1 ratio to lift, up to 1600 lbs. (725 Kg)
• CE Certified (EC and EU Type Examination Cert)

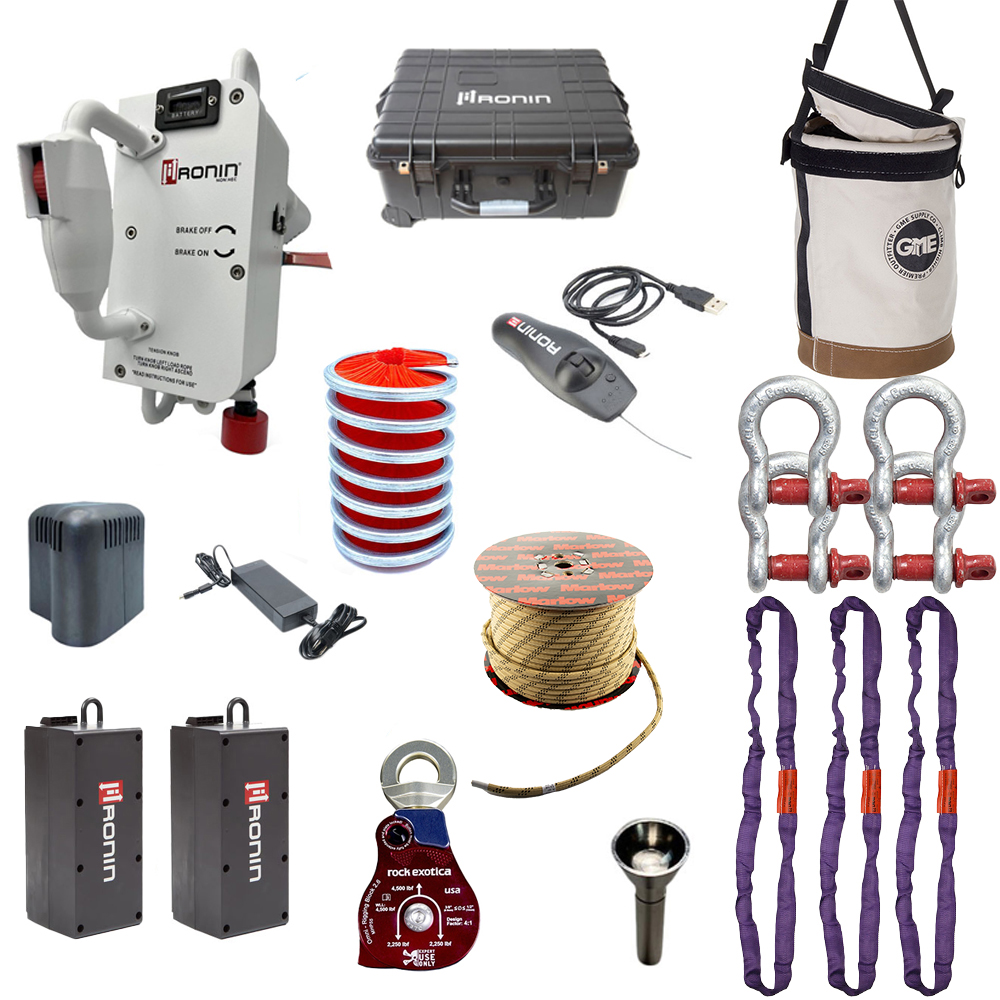

Kit Includes:

• 1 Ronin Lift Ascender
• 1 Wireless Remote
• 1 Anti-Panic Handle

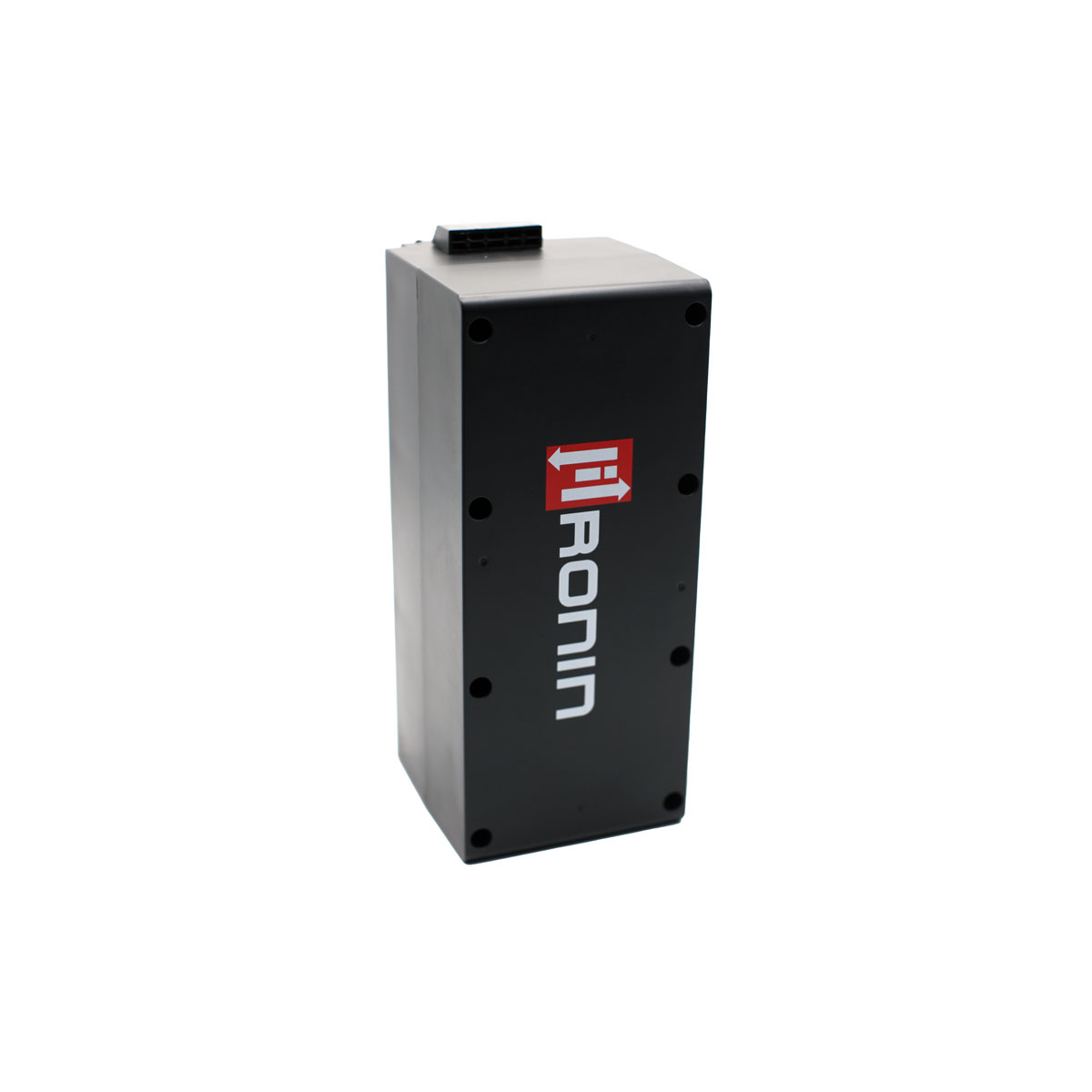

• 2 Batteries
• 1 Charger
• 1 Charger Cable – Type A, B, or C

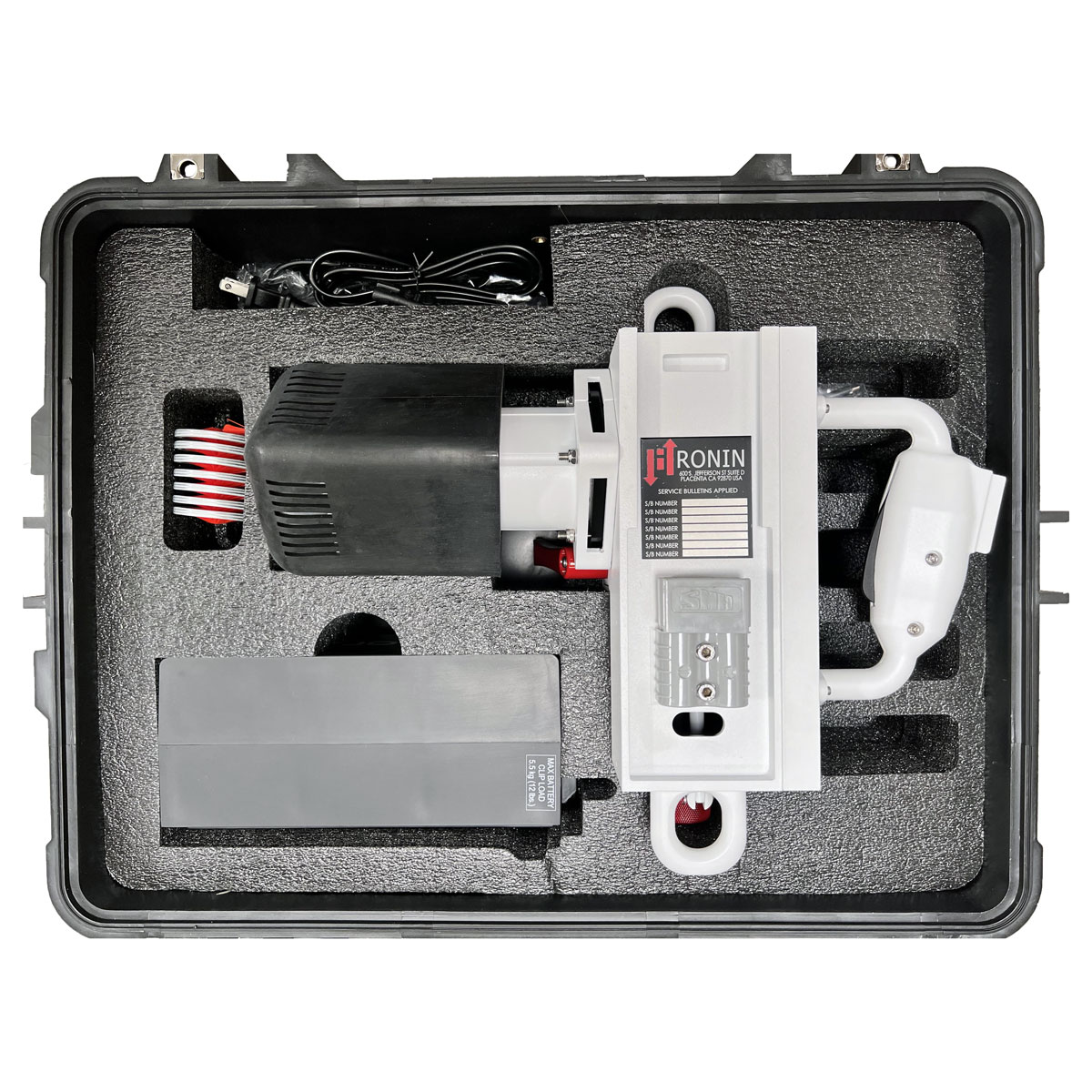

• 1 Hard Case w/Custom Foam
• 1 Rope Brush
• 1 Rubber Motor Protector
• 1 Perfect Burn Tip
• 1 Canvas Bucket w/ Connection Points

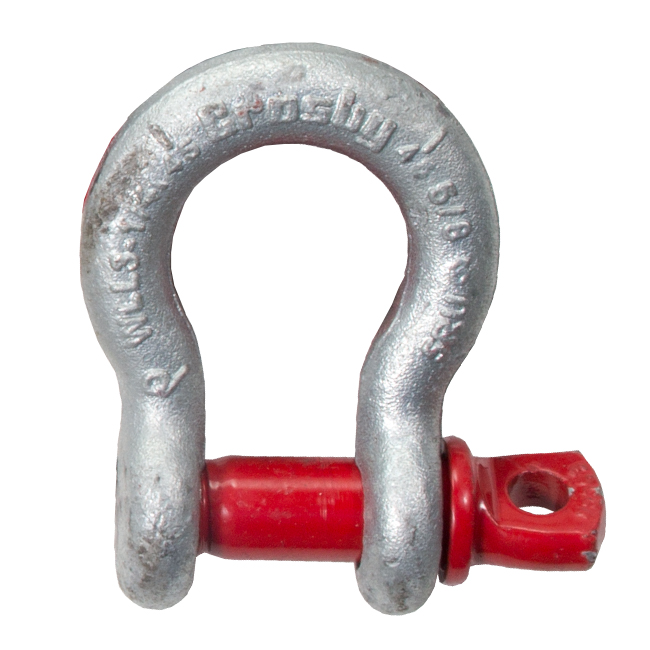

• 4 Crosby F-209 Galvanized Screw Pin Shackles
• 3 Lift-All Purple Endless Round Sling
• 1 Rock Exotica Omni-Block 2.6 Inch Rigging Pulley / Material Handling Block
• 1 Marlow Ronin HP Kernmantle Rope - Natural Color with 300 Feet

Be advised: For the Bluetooth Remote, the range is a 300ft clear line of site so they may have obstruction issues. High-energy power lines of 350kv or higher can also affect the remotes.

Specifications:

• Width (W): 11.35 in.
• Depth (D): 15.39 in.
• Height (H): 13.35 in.
• Weight: Approximately 24 lbs.
• Construction: Aluminum, Stainless Steel, and Bronze
• Finish: Powder Coat Black
• Operating Temperature Range: -4 ºF – 120 ºF
• Ingress Protection: IP54
• Battery Type: 28 VDC Lithium Ion Rechargeable
• Battery Life Ascent: 350 ft. of rope @ 400 lbs.
• Standard Battery:  700 ft. of rope @ 200 lbs.
• Battery Re-Charge Time: Approximately 2 hours
• Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope
• Rope Loading: End Feed
• Ascent Speed: Variable (0.5 – 1.5 ft./per second)
• Descent Method: Gravity Feed with Manual Brake
• Descent Speed: 3.5 ft./sec. max @ 400 lbs.
• Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
• Max Working Load: 400 lbs.
• Product Certifications: CE Certified & ANSI Certified
• Reverse Functionality: For Angled Ascents, winching applications, removing rope from the system.
