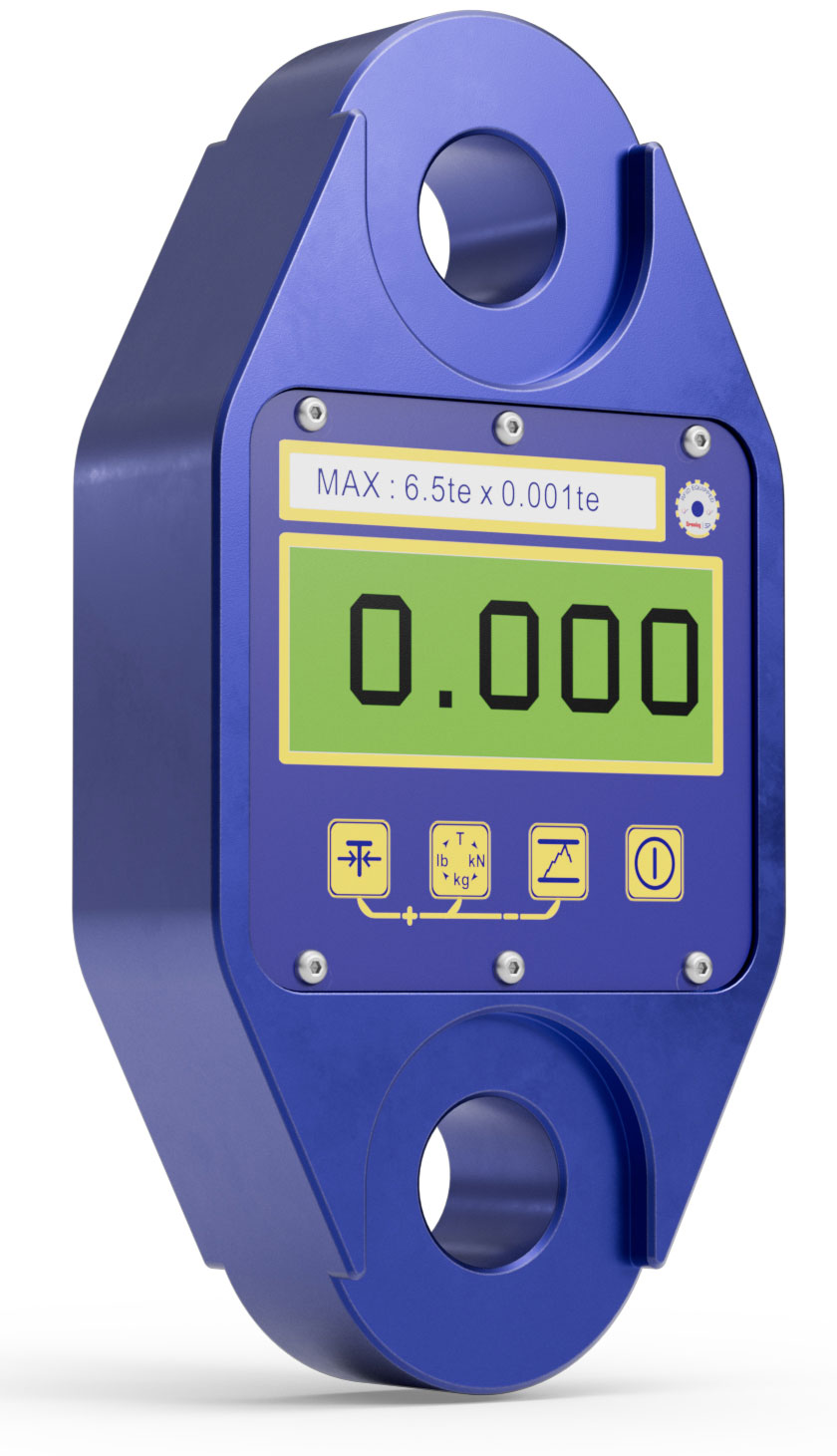

Designed to replace outdated analog mechanical dynamometers, the SID Self indicating dynamometer provides a measuring capacity of 14,300lb / 6500kg / 6.5t. It is ideal for use where close-up load monitoring is required, such as when operating lever or chain hoists at height or lifting vehicle motors.

Providing accurate load measurement and incident and injury prevention this dynamometer is rigged using industry-standard shackles such as Crosby G2130, the compact design minimizes headroom loss (6.14” or 156mm from eye to eye).

Constructed with high-grade aircraft quality aluminum and with a safety factor of 6:1, its lightweight design does not sacrifice on strength in fact, Crosby SP’s link style dynamometers are on average 30% lighter than other suppliers.

• 0.2% high accuracy
• Includes Calibration Certificate
• Resolution of 2 Lbs (0.001 Ton)
• Selectable measurement units (lbs, kg, kN and ton)
• 100Hz high-speed peak hold
• 90db Audible set point alarm limit
• Tare and preset tare
• Overload counter
• Large 1” / 25mm LCD display
• 6:1 Safety Factor
• RS-485 serial output
• IP65 / NEMA 4X Protection for use outdoors in all weather conditions
• Operating Temperature Range of 14 to 122° F (-10 to +50° C)
• 2-year warranty
