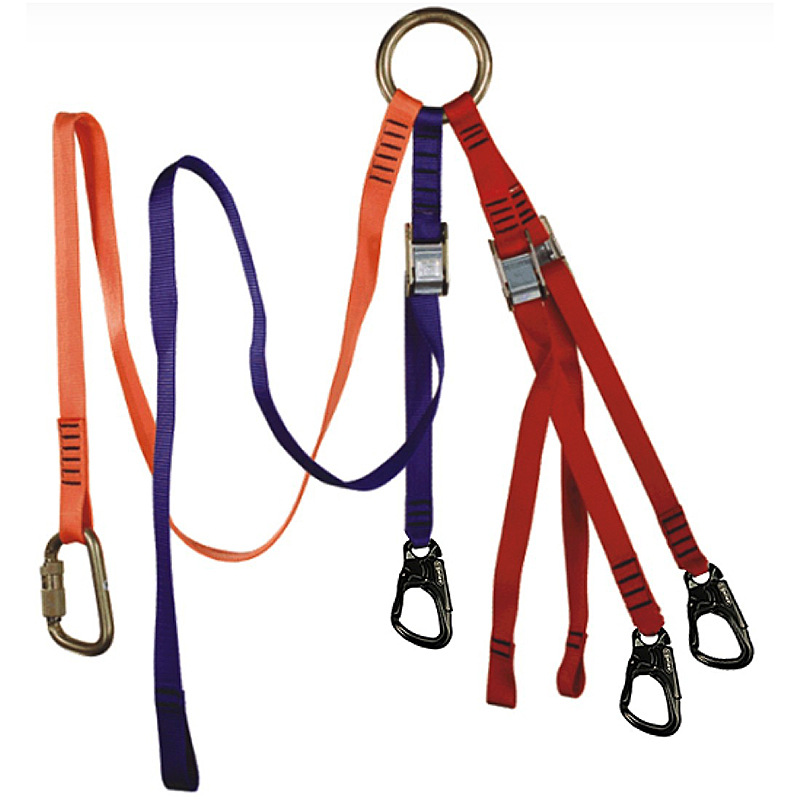

Yates 905 Standard Spec Pak Lifting Bridle System

This system of lifting is useful when longer suspension times are anticipated, reducing the chances of development of suspension syndrome. Lifting bridle is attached to a chest-mounted D-rings on Spec Pak. Head and leg strap allows for the complete stabilization of the patient without the need for a full litter. Head Strap allows it is easily adjustable with the use of 6kN rated Ancra Cam Buckles. Lifting bridle has full strength 22.2 kN rating. Use od Leg/Knee support strap allows for horizontal lifting. All carabiners and connectors are included. SWL/WLL 2.3kN. MBS 23 kN.

Spec Pak will not function in all lifting modes without the use of Lifting Bridles. The use of Lifting Bridle is recommended for use in most lifting operations. The upper D ring attachment should only be used for short duration lifts 5-10 minutes. Standard Lifting Bridal System (905) is included with 900 Spec Pak.

Features:

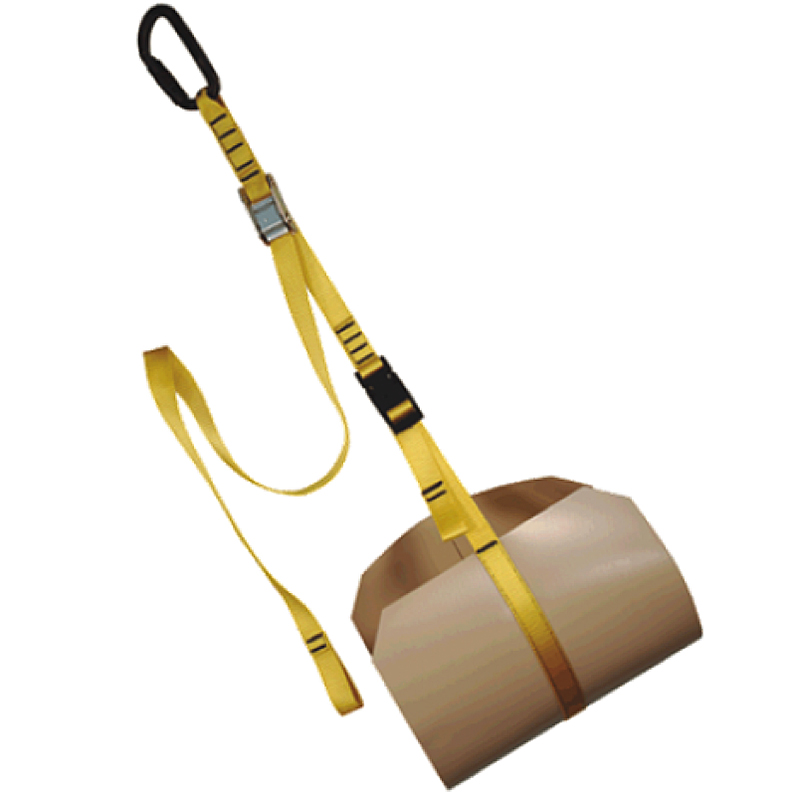

• Head and leg strap allows for complete stabilization of patient without the need for a full litter
• Lifting bridle has full strength 22.2 kN rating
• Carabiners and connectors are included

Specifications:

• Origin:   Made in the USA
• Strength:   5,000 lbf. (22kN)
