Model#: G-2130
Stock#: C-CY-1019470
$17.38 to $384.00
FREE SHIPPING OVER $75!
Please select an option below
Model#: G-2130
Stock#: C-CY-1019470
$17.38 to $384.00
FREE SHIPPING OVER $75!
Please select an option below

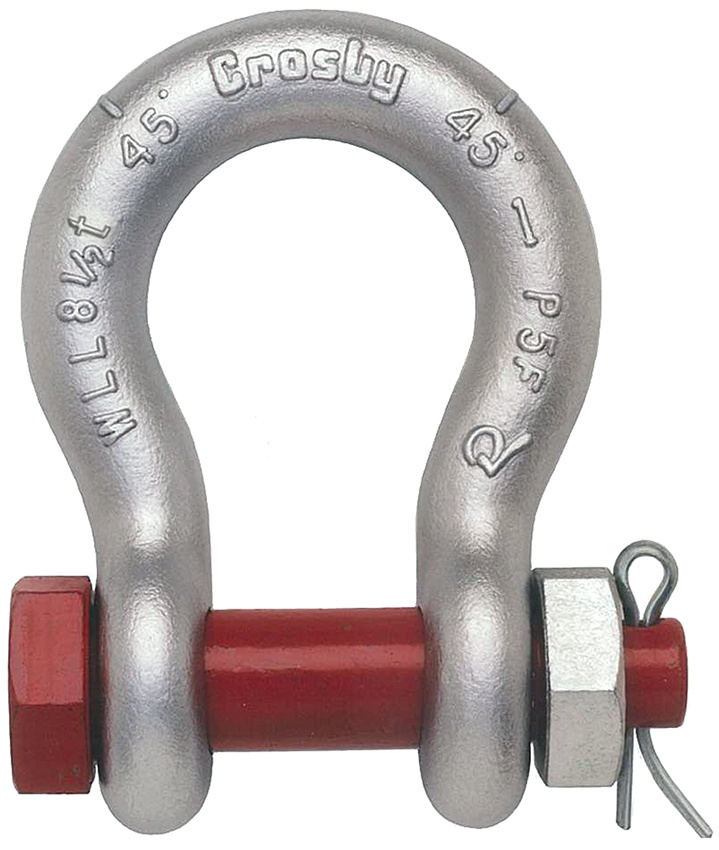

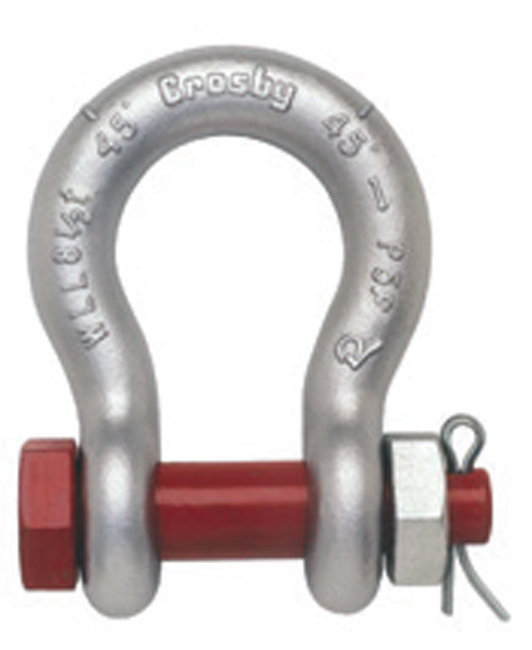

Crosby's Galvanized Bolt Type Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are quenched and tempered then hot dip galvanized to offer durability for lifting applications. Crosby shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA. Each shackle includes an alloy bolt.
Crosby Galvanized G-2130 Bolt Shackle Chart
|
PART |
DIAMETER |
WLL |
WEIGHT |
|
1019470 |
3/8” |
1 ton |
0.33 lbs |
|
1019472 |
1/2” |
2 tons |
0.79 lbs |
|
1019490 |
5/8” |
3.25 tons |
1.68 lbs |
|
1019515 |
3/4” |
4.75 tons |
2.72 lbs |
|
1019533 |
7/8” |
6.5 tons |
3.95 lbs |
|
1019551 |
1” |
8.5 tons |
5.66 lbs |
|
1019579 |
1-1/8” |
9.5 tons |
8.27 lbs |
|
1019597 |
1-1/4” |
12 tons |
11.71 lbs |
|
1019613 |
1-3/8” |
13.5 tons |
15.83 lbs |
