Model#: G-209
Stock#: C-CY-1018419
$10.76 to $733.00
FREE SHIPPING OVER $75!
Please select an option below
Model#: G-209
Stock#: C-CY-1018419
$10.76 to $733.00
FREE SHIPPING OVER $75!
Please select an option below

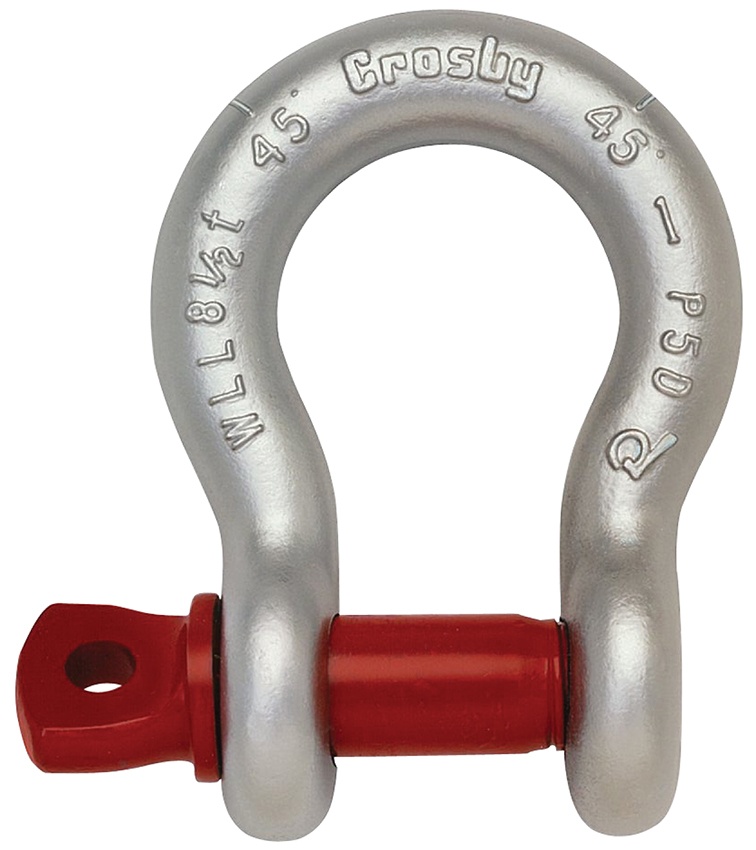

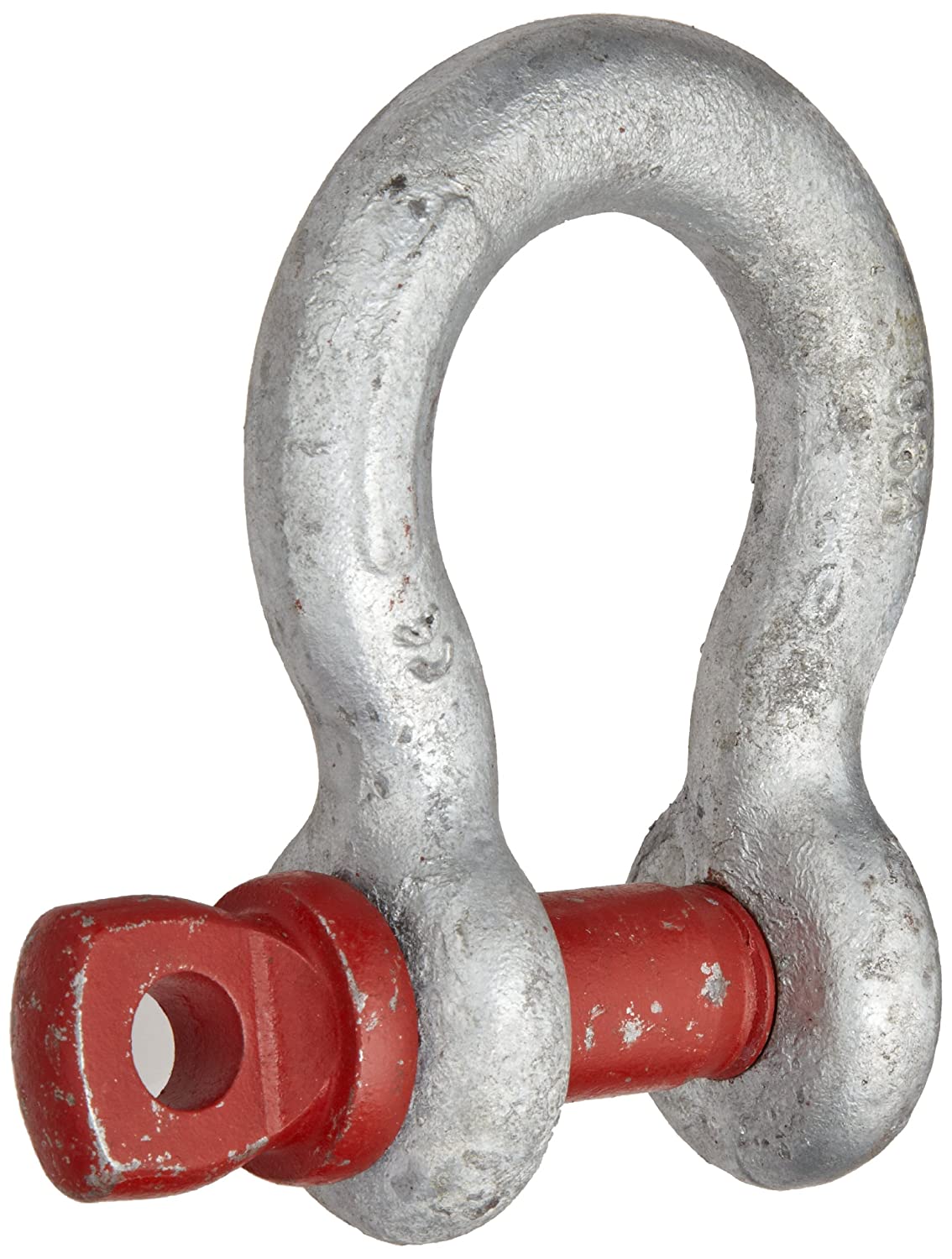

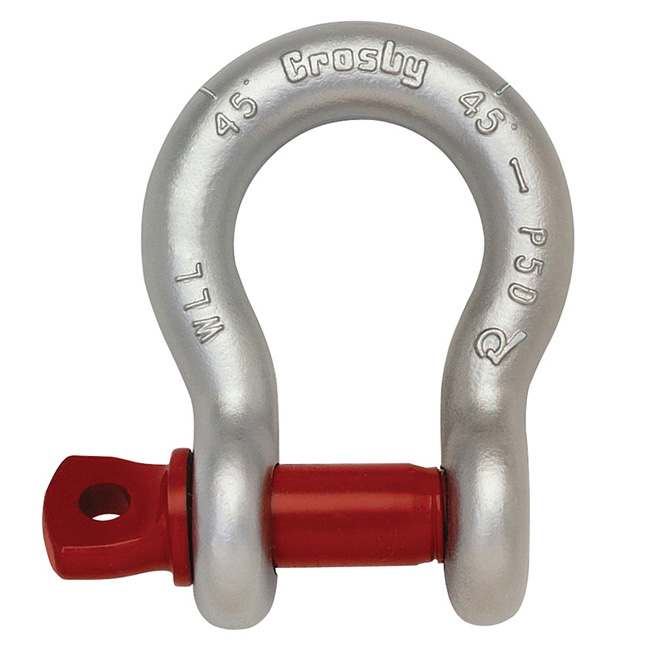

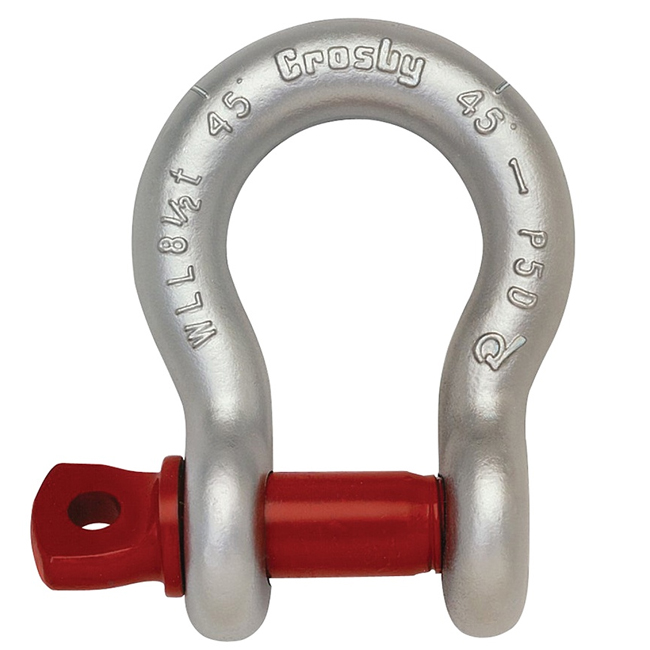

Crosby's Galvanized Screw Pin Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are hot dip galvanized and quenched and tempered to provide durability for lifting applications. Crosby shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA.

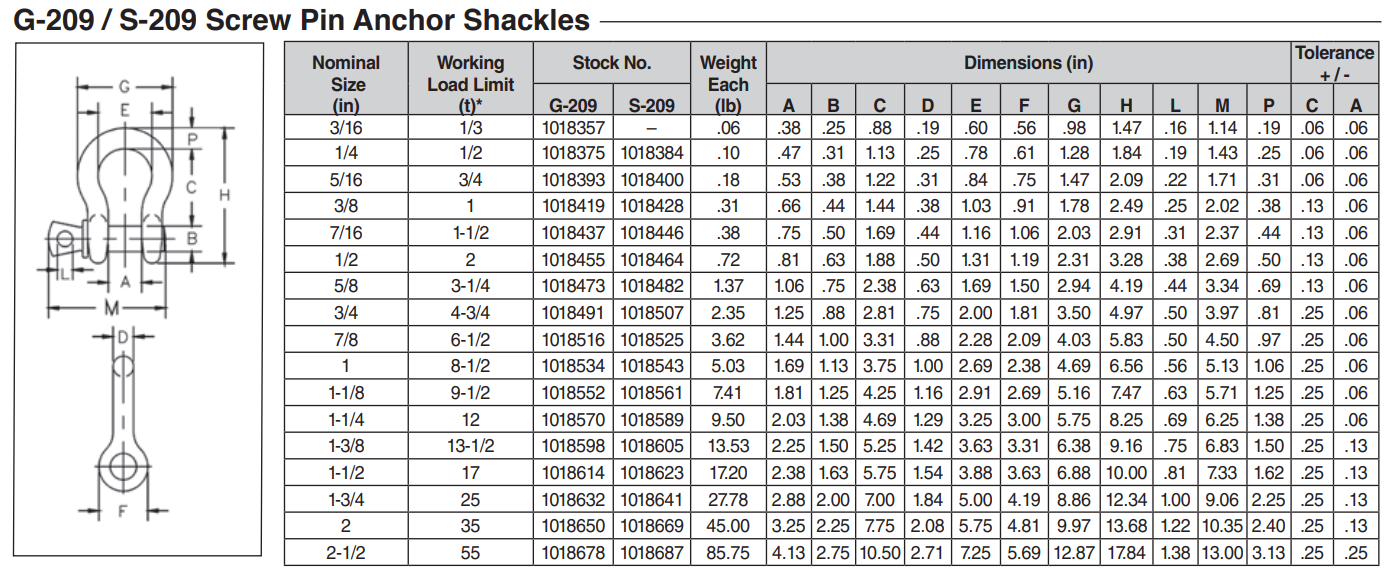

Crosby Galvanized G-209 Screw Pin Shackle Chart
Available Options:
|
PART |
DIAMETER |
WLL |
WEIGHT |
|
1018357 |
3/16" |
1/3 ton |
.06 lbs |
|

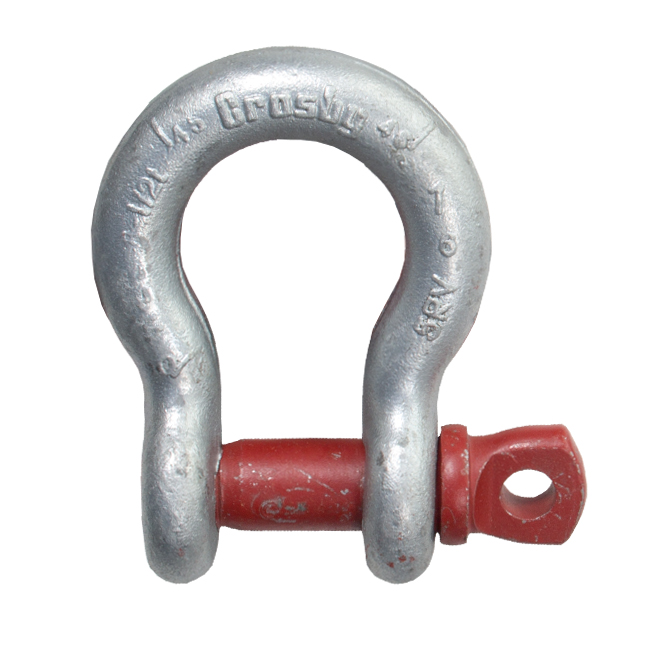

1018375 |
1/4" |
1/2 ton |
.10 lbs |
|
1018393 |
5/16" |
3/4 ton |
.18 lbs |
|
1018419 |
3/8" |
1 ton |
0.31 lbs |
|
1018437 |
7/16" |
1.5 ton |
.38 lbs |
|

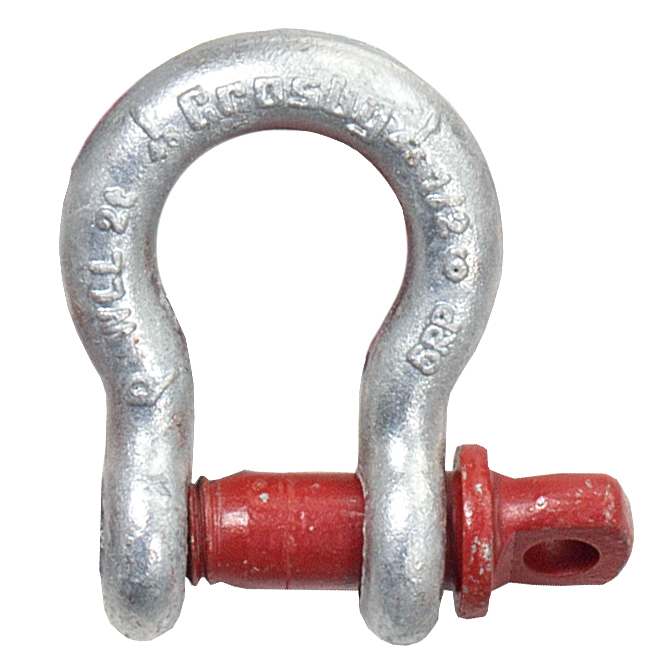

1018455 |
1/2" |
2 tons |
0.72 lbs |
|

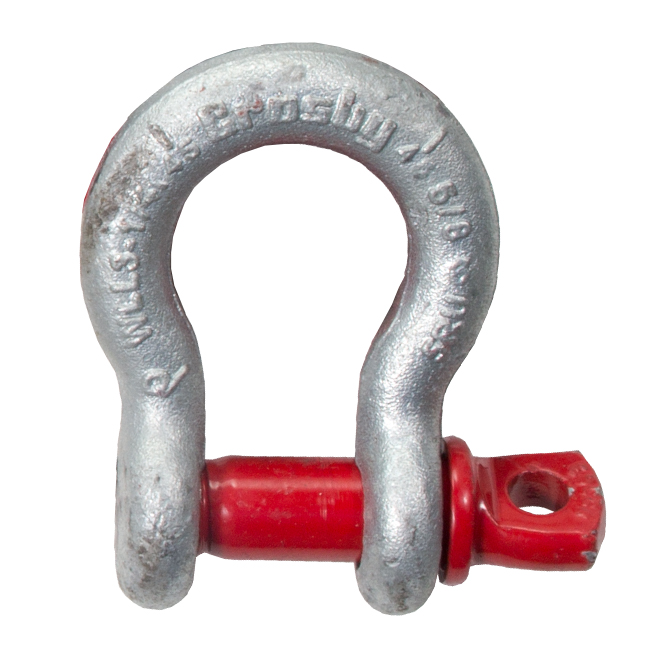

1018473 |
5/8" |
3.25 tons |
1.37 lbs |
|

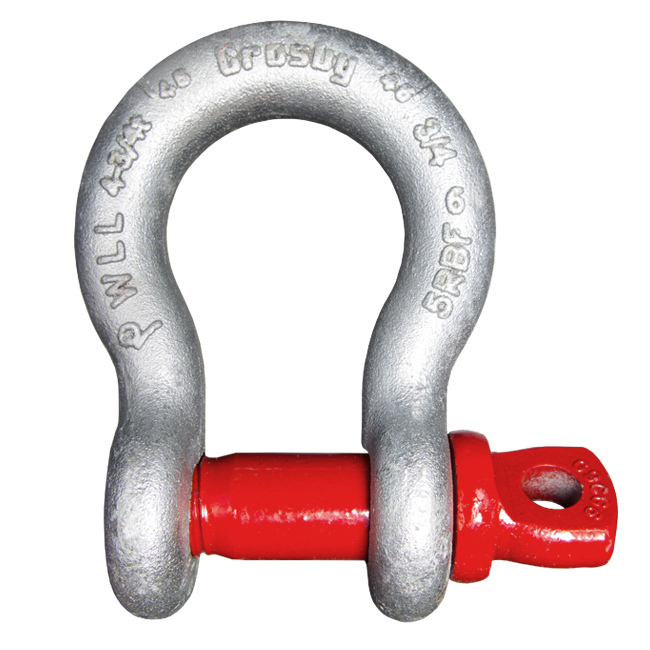

1018491 |
3/4" |
4.75 tons |
2.35 lbs |
|
1018516 |
7/8" |
6.5 tons |
3.62 lbs |
|
1018534 |
1" |
8.5 tons |
5.03 lbs |
|
1018552 |
1-1/8" |
9.5 tons |
7.41 lbs |
|
1018570 |
1-1/4" |
12 tons |
9.5 lbs |
|
1018598 |
1-3/8" |
13.5 tons |
13.53 lbs |
|
1018614 |
1-1/2" |
24.5 tons |
17.2 lbs |
|
1018632 |
1-3/4" |
25 tons |
30.38 lbs |
|
1018650 |
2" |
35 tons |
45 lbs |
