Model#: P54
Stock#: C-RX-P54
$112.00
THIS ITEM SHIPS FOR FREE!
Please select an option below
Model#: P54
Stock#: C-RX-P54
$112.00
THIS ITEM SHIPS FOR FREE!
Please select an option below

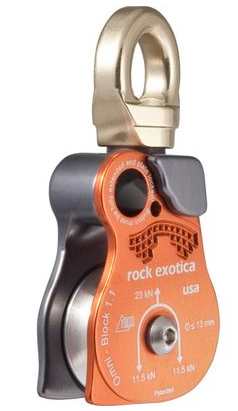

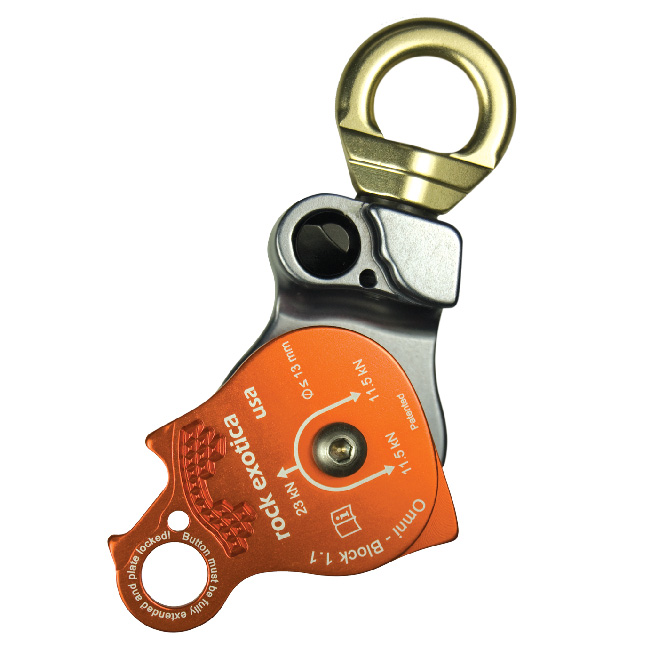

The Omni-Block combines a pulley with a swivel and offers tremendous advantages. It can replace a conventional pulley, carabiner & swivel and is lighter, less expensive and saves valuable vertical space. It also allows installing/removing the rope while the pulley is still anchored. While the standard version serves the needs of most users, the Omni is also available with some specialized options.
Specifications:
Available Colors:
Rock Exotica Omni-Block Chart
|
ROCK EXOTICA OMNI-BLOCKS |
||||||||
|
DESCRIPTION |
SHEAVE |
MATERIAL |
COLOR |
WEIGHT |
MBS |
WLL |
MAX ROPE |
CERTIFICATION |
|
1.1” (28 mm) |
Aluminum |
Standard |
5.1 oz (145 gm) |
23 kN |
5 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.1” (28 mm) |
Aluminum |
Black |
5.1 oz (145 gm) |
23 kN |
5 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Standard |
9.2 oz (260 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
9.2 oz (260 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
10.7 oz (303 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Standard |
14.5 oz (411 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
14.5 oz (411 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Standard |
12.3 oz (348 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Black |
12.3 oz (348 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Standard |
19.4 oz (548 gm) |
40 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Black |
19.4 oz (548 gm) |
40 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.6” (66 mm) |
Aluminum |
Standard |
1.9 lbs (850 gm) |
80 kN |
20 kN |
0.5” (13 mm) |
CE / UIAA |
|
